Marine fouling (biofouling) is the accumulation of aquatic organisms on submerged surfaces – everything from bacterial slime and algae to barnacles, mussels, and other marine life attaching to hulls, offshore structures, and intake pipes. This growth occurs rapidly and can have serious impacts on marine assets. Heavy fouling increases a ship’s weight and hydrodynamic drag, which forces engines to work harder. Studies have found that fouling can boost a vessel’s fuel consumption by as much as 40%, translating to billions of dollars in extra fuel cost industry-wide​. On a global scale, hull fouling is estimated to account for about 9% of the entire shipping fleet’s fuel consumption, adding roughly 80 million tons of excess CO2 emissions and $16 billion in fuel costs per year​.

Fouling doesn’t just affect ship hulls – it also clogs seawater cooling systems and offshore equipment. Marine growth inside cooling water intakes and piping can constrict flow and foul heat exchangers, leading to reduced cooling efficiency or even engine overheating and failure​. On offshore oil platforms, thick barnacle and mussel growth on underwater members adds weight and increases hydrodynamic loading, stressing the structure during waves and storms. In short, unchecked marine growth can raise operating costs, increase downtime for cleaning and repairs, and shorten the service life of assets through corrosion acceleration and material damage. These problems make effective antifouling measures a critical aspect of marine asset management.

Overview of Antifouling Strategies

Over the years, the marine industry has developed several strategies to prevent or reduce biofouling on ships and structures. Traditional approaches include antifouling coatings (specialized hull paints) formulated with biocides like copper compounds that slowly leach out and deter organism growth. Older tin-based paints (tributyltin, or TBT) were extremely effective but were globally banned in 2008 due to their toxicity to marine life​. Modern antifouling paints typically use copper oxide and other biocides or slick non-stick (foul-release) coatings to impede growth. Regular hull cleaning by divers or hull-cleaning robots is another method to remove fouling before it becomes severe. Other physical techniques such as ultrasonic antifouling (using ultrasonic transducers on the hull) and UV light emitters in sea chests have emerged to continuously discourage biofouling without chemicals.

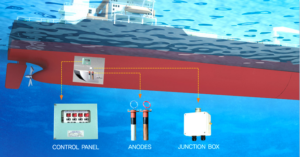

Marine Growth Prevention Systems (MGPS) – sometimes called Impressed Current Anti-Fouling (ICAF) systems – are an active antifouling strategy that uses sacrificial anodes or impressed currents to release ions (like copper) or chlorine into seawater. This ion release creates an environment where barnacles, mussels, and algae cannot settle or survive. For example, MGPS commonly employ copper anodes mounted in a ship’s sea chest or cooling pipelines; as a small current is passed, the anodes release minute concentrations of copper (on the order of 2 parts per billion) which effectively prevents larvae from attaching​. These systems protect internal piping without the use of chemical dosing, and are widely used on ships and offshore installations to keep critical cooling water circuits clear of growth.

While coatings and cleaning address fouling on external surfaces, cathodic protection systems – the focus of this article – offer a way to combat fouling and corrosion using electrochemistry. Cathodic protection is traditionally used to prevent corrosion of metal surfaces by making the structure a cathode in an electrochemical cell. Interestingly, cathodic protection (especially impressed current systems) can also incidentally help inhibit biofouling in some cases, or at least work in tandem with antifouling measures. Below, we explore the two main types of cathodic protection that use anodes – sacrificial anodes and impressed current systems (ICCP) – and how they contribute to both corrosion prevention and marine growth control.

Sacrificial Anode Cathodic Protection (SACP)

Sacrificial anode systems, also known as galvanic cathodic protection, rely on highly active metal anodes that corrode (sacrifice themselves) to protect the more valuable steel structure. The anodes – typically made of zinc, aluminum, or magnesium alloys – are bolted or welded to the hull or structure and electrically connected to it. Because these metals are more anodic (less noble) than steel in the galvanic series, they preferentially oxidize in seawater, releasing electrons that flow to the steel and cathodically polarize it (making the steel surface the cathode). In essence, the sacrificial anodes “take on” the corrosion, sparing the structure​. The steady dissolution of the anodes provides a continuous protective current that prevents the steel from rusting.

Sacrificial anode CP systems are passive and simple – they require no external power or complex controls. This makes them very reliable; as long as the anode material remains, protection is delivered automatically. Sacrificial anodes also help mitigate biofouling to a minor extent: the protective current causes the steel surface to develop alkalinity and calcareous coatings (Calcium/Magnesium salts) that can make it slightly harder for organisms to adhere. However, on their own, sacrificial anodes are not a primary antifouling solution – in practice they are combined with antifouling coatings for hull fouling control.

Galvanic anodes are widely used in marine environments due to their ease of installation and proven performance. They are common on smaller vessels, harbor facilities, and offshore structures. For example, a typical fixed offshore platform will have dozens or even hundreds of aluminum alloy anodes welded along its underwater jacket to provide corrosion protection for 20+ years. Each anode can be quite large – often 100–200+ kg for deepwater applications​ – reflecting the amount of material needed to last for the structure’s design life. Sacrificial anodes are also spaced along subsea pipelines (usually as “bracelet” anodes clamped around the pipe at intervals) to protect the pipeline’s length. A spacing of roughly one anode every few hundred meters is common, though optimal spacing is determined by detailed engineering based on seawater resistivity and pipeline coating quality​.

The main advantages of sacrificial anode systems are their simplicity and independence from external power. They can be installed on virtually any structure and will begin protecting as soon as immersed in electrolyte. There is minimal risk of system failure since no moving parts or power systems are involved. However, this method has some drawbacks: the amount of protective current is limited by the anode material and area, so very large structures need many anodes. They also add weight and drag (in the case of hull-mounted anodes on ships) and must be periodically replaced once consumed. According to corrosion experts, galvanic anode systems tend to have a shorter lifespan and limited capacity, and they cannot easily be adjusted or turned off – the protection level is not easily controllable once installed​. Despite these limitations, sacrificial anodes remain a backbone of corrosion protection for countless marine assets due to their reliability and ease of use.

Impressed Current Cathodic Protection (ICCP)

Impressed Current Cathodic Protection (ICCP) systems take a more active approach. Instead of relying on the natural galvanic potential of sacrificial metals, ICCP uses an external DC power source (rectifier) to drive protective current to the structure. In an ICCP setup, inert anodes made from materials like titanium coated with mixed metal oxides (MMO) or platinum are mounted on the structure’s hull or submerged near it. These anodes are connected to the positive terminal of the DC power supply, and the structure is connected to the negative terminal, making the structure the cathode. When energized, the anodes discharge a controlled current into the seawater, which then flows onto the surface of the protected structure, polarizing it to a cathodic (negative) potential and halting its corrosion​. The inert anodes themselves do not significantly corrode (they are designed to resist consumption, only releasing electrons and causing electrochemical reactions in the water such as oxygen reduction on the cathode). This means they can provide protection without needing regular replacement of anode material.

A hallmark of ICCP systems is their automatic control capability. They typically include reference electrodes mounted on the hull which measure the electrochemical potential of the hull with respect to seawater. A control panel uses this feedback to adjust the output current from the anodes, ensuring the hull’s potential stays in the desired range (usually around –0.8 V to –0.85 V Ag/AgCl for steel in seawater, which is sufficient to prevent corrosion). This closed-loop control prevents under-protection (if the potential rises too high, more current is applied) as well as over-protection (if the potential is too low/negative, current is reduced to avoid issues like coating damage or hydrogen evolution). The result is a consistent level of corrosion prevention optimized to conditions.

ICCP is often favored for large ships and structures because it can deliver high protection currents without the weight or hydrodynamic penalties of numerous sacrificial anodes. A few flush-mounted ICCP anode assemblies can replace dozens of bulky zinc anodes on a ship’s hull. Since the anodes are inert and only a small amount of material erodes over time, ICCP systems can operate for long periods (5–15+ years) before anode replacement, just requiring routine electrical maintenance. Impressed current systems thus offer high capacity and long-term efficiency – they can be sized to protect virtually any structure, large or small, by adjusting the power supply. As a reference, experts note that ICCP provides optimal corrosion protection with an adjustable output and generally enjoys a longer lifespan and higher current capacity compared to sacrificial anodes.

There are some trade-offs to ICCP. The systems are more complex and require a reliable power source (usually from the ship or platform’s electrical system). Installation involves mounting anodes, reference cells, and running cables and hull penetrations for the wiring, as well as installing the rectifier/control unit – this is a more involved process than simply welding on a sacrificial anode. The initial cost of ICCP equipment is higher, and specialist knowledge is needed to design and maintain the system. If the system fails or loses power, corrosion can progress rapidly (though often a safety factor of small sacrificial anodes or backup battery is provided on critical structures). Moreover, impressed current anodes driving high currents can cause unintended side effects such as producing chlorine gas (from seawater electrolysis) or interfering with nearby structures via stray currents if not properly designed. Despite these considerations, ICCP is a proven technology widely employed on ships and offshore units for robust corrosion protection. It effectively separates the antifouling function from the corrosion protection function: a ship with ICCP still uses antifouling paint or MGPS for biofouling, while ICCP handles corrosion prevention in an efficient manner.

ICCP vs. Sacrificial Anodes: Comparative Analysis

Both sacrificial anode systems and impressed current systems achieve the same fundamental goal – protecting structures from corrosion by making them cathodic – but they differ in implementation, cost, and practicality. Table 1 below summarizes the key differences between the two approaches:

As highlighted above, sacrificial anode systems excel in simplicity – they are economical and straightforward to install, with no risk of power loss, which makes them very attractive for smaller or remotely located assets. However, they have inherent limitations in longevity and power: once the anode material is consumed, protection ceases, so they must be designed with enough mass to last until the next service interval. In contrast, ICCP systems offer greater control and endurance, delivering protection through an adjustable current that can be tuned to environmental conditions. This is especially valuable for larger vessels or platforms where corrosion rates may vary over time. Industry guidelines note that sacrificial anodes are valued for being fail-safe and easy, but come with shorter life and limited capacity, whereas ICCP provides optimum protection with a long service life (at the cost of complexity and higher upfront expense)​. In practice, the choice between ICCP and sacrificial anodes depends on the specific application, size of the structure, available power, maintenance strategy, and regulatory considerations. Often a combination is used – for example, a ship may have an ICCP system for the hull and also a few sacrificial anodes on rudders or propellers, plus an MGPS for internal pipes.

Applications Across Marine Assets

Effective antifouling and cathodic protection are employed across a wide range of marine industries, each with its own specific needs:

Ships and Vessels

Ships of all types must contend with both hull biofouling and hull corrosion. The typical solution is a multi-pronged approach: the hull is coated with antifouling paint to minimize organism growth, and a cathodic protection system prevents electrochemical corrosion of the hull steel. Many large commercial ships (tankers, container ships, cruise ships, etc.) and naval vessels use ICCP systems for hull corrosion protection​. ICCP anodes and reference electrodes are installed flush with the hull, usually on the bottom and stern areas, to protect the wetted surface and appendages. This reduces the need for numerous sacrificial anodes, saving fuel by avoiding extra drag. Smaller ships and boats, on the other hand, often rely on sacrificial anodes – you’ll see zinc anode bars or discs on the hull, rudder, and propulsion gear of many yachts, fishing boats, and tugs. These anodes are simple and work well for modest-sized vessels or where power for ICCP is not available.

In addition to external hull protection, ships must also prevent marine growth in their internal seawater systems. Sea chest grids, pipework, heat exchangers, and fire pumps that use seawater are prone to biofouling. To address this, many vessels employ Marine Growth Prevention Systems (MGPS/ICAF) that use anodes to dose small amounts of copper and chloride ions into the seawater flow. This practice is widespread – Cathelco (Evac), a major MGPS provider, notes that their impressed-current antifouling systems are installed on over 50,000 vessels worldwide to stop mussels and barnacles from blocking ship cooling pipes​. By keeping internal systems clear, MGPS helps maintain engine cooling efficiency and prevents the kind of dangerous fouling-related breakdowns mentioned earlier. The combined use of antifouling coatings, ICCP for corrosion, and MGPS for internal antifouling allows ships to operate efficiently between drydock intervals with minimal performance loss due to biofouling.

Offshore Platforms and Energy Facilities

Offshore oil & gas platforms, wind farm monopiles, and other fixed marine structures face harsh conditions for both corrosion and fouling. Sacrificial anode CP is extremely common on offshore steel jackets – large aluminum alloy anodes are welded at intervals on legs, cross-bracings, and subsea equipment. These anodes are designed to provide corrosion protection for the intended life of the platform (often 20–30 years) without replacement. For example, a North Sea jacket platform might be outfitted with hundreds of kilogram-size anodes distributed over the structure to ensure complete cathodic coverage. Thick biofouling inevitably grows on platform legs and risers; while sacrificial anodes do not prevent this growth, they continue to protect the steel under the fouling. Operators will periodically have divers scrape off heavy growth if it becomes problematic, but generally the fouling is tolerated unless it affects safety or inspections.

Newer offshore facilities sometimes opt for ICCP systems instead or in addition to galvanic anodes. ICCP can be advantageous on very large floating structures like FPSOs (Floating Production Storage and Offloading vessels) or semi-submersibles, which have onboard power and can benefit from reduced anode weight. Retrofitting ICCP is also a solution if an existing platform’s sacrificial anodes deplete before end-of-life – anodes and reference cells can be installed via divers or ROVs and tied to a power source topside to restore protection. Offshore wind turbines, which have electrical generators, have started using ICCP on their monopile foundations to avoid the need for massive aluminum anodes and to facilitate remote monitoring of corrosion protection from shore. Regardless of CP method, offshore installations must also consider antifouling to protect critical components. Sea-water intake systems on platforms (for firewater or cooling) often use MGPS anodes or electrochlorination to prevent blockage. Some subsea equipment may be fitted with antifouling coatings or even UV lights on intakes to mitigate growth. Thus, a combination of sacrificial anodes/ICCP for corrosion and targeted antifouling measures for key areas is common in the offshore sector.

Subsea Pipelines and Cables

Subsea pipelines (and to some extent power/fiber-optic cables with metallic armor) are protected primarily by sacrificial anode cathodic protection. Pipeline sections are outfitted with bracelet anodes at regular spacing along their length. These anodes, usually aluminum alloy, are clamped or bolted onto the pipe over its coating. They are designed based on pipeline length, diameter, coating quality, and environmental factors so that their combined output will keep the entire pipeline polarized in the safe range. A rule of thumb in earlier decades was an anode every ~400 meters for well-coated lines​, but actual spacing is optimized through CP modeling. The anodes corrode slowly and continuously, protecting the pipe from generalized corrosion and pitting, even if the external coating sustains damage or holidays. For long pipelines, sacrificial CP is favored because it is autonomous and maintenance-free — running power cables or remote ICCP anodes along a 100-km subsea pipeline is impractical. Near platforms or shore crossings, sometimes impressed current ground beds or anodes are used to supplement protection (for instance, anodes at a platform jacket can also protect tie-in spools or pipeline end manifolds via the electrical continuity). Overall, subsea pipelines demonstrate the reliability of sacrificial anodes: many pipelines installed decades ago with galvanic CP continue to operate safely with their original anodes still slowly wasting away, having prevented corrosion all that time.

It’s worth noting that biofouling on subsea pipelines is usually less of a direct operational concern (since a bit of marine growth on the pipe doesn’t significantly affect its function). However, biofouling can increase the effective diameter and roughness of pipeline bundles or umbilicals, potentially affecting hydrodynamic stability on the seafloor, and can make inspections (via ROV sonar or cameras) more challenging. As a result, some pipeline operators apply antifouling coatings or periodic cleaning for critical shallow-water lines, but in most cases the natural growth is left unless it interferes with something. The main emphasis for pipelines remains on corrosion control via CP, with fouling control being secondary except in specific scenarios.

Cooling Water Systems and Sea Chests

Marine and coastal facilities that use seawater for cooling – including power plants, desalination plants, coastal industrial facilities, and ships’ engine cooling systems – must prevent biofouling in their intake tunnels, piping, and heat exchangers. Even a thin layer of slime or shell growth in a heat exchanger can drastically reduce heat transfer efficiency, and unchecked mussel growth can clog pipes completely. Marine Growth Prevention Systems (MGPS) are widely used in these applications. A common arrangement is to install pairs of antifouling anodes (usually copper and aluminum) in the sea chest or pump suction of the cooling circuit. When energized, the copper anode releases a controlled dose of copper ions, and the aluminum anode produces aluminum hydroxide – this combination spreads through the pipework and prevents organisms from settling and multiplying​. The concentration of copper ion is very low (on the order of 2 ppb as mentioned), but it is enough to create an environment that is biocidal to barnacles and mussel larvae. The aluminum hydroxide helps by flocculating the released copper, distributing it and also forming a thin protective film on pipes.

Such impressed current antifouling systems (MGPS/ICAF) are essentially a specialized use of sacrificial anodes for biofouling control rather than corrosion control. In fact, they often serve dual-purpose: the slight anodic current and metal ions also give a bit of corrosion inhibition to the piping system. These systems are prevalent on ships (for engine cooling, firefighting systems, condensers) and are also used in onshore power plants and jetties. An alternative approach is electrochlorination, where inert anodes (like MMO-coated electrodes) generate sodium hypochlorite by splitting seawater salt – this chlorinated water is then dosed into the cooling system to kill growth. Both copper-ion and electrochlorination methods achieve similar results; the choice depends on the specific organism risks and regulatory constraints. Real-world examples include: coastal power stations with electrochlorination plants at their intakes to continuously produce chlorine for biofouling control, and large ships that have cupro-nickel heat exchanger tubes protected by a combination of small zinc anodes for corrosion and MGPS for biofouling. In all cases, maintaining flow and heat transfer by preventing marine growth is vital, and anode-based antifouling systems have proven to be an efficient, low-maintenance solution.

Installation and Maintenance Best Practices

Implementing cathodic protection and antifouling systems on marine assets requires adherence to best practices in both installation and upkeep. Below are some key guidelines to ensure these systems perform effectively over their service life:

• Thorough Design and Positioning: Properly engineer the CP system for complete coverage. Calculate anode requirements (size, number, placement) so that all parts of the structure receive protection current. For ICCP, position anodes and reference cells in locations that will protect the entire wetted surface (e.g. near the stern, bow, and midsections of a hull) and not be blocked by geometry. For antifouling anodes in cooling systems, install them as close to the water intake as possible so ions disperse through all downstream piping.

• Secure Installation: Ensure sacrificial anodes are firmly attached with good electrical contact to the structure (welded pads or bolted connections on clean, unpainted metal). Poor contacts can negate protection. ICCP anodes must be mounted and sealed correctly to prevent leaks through hull penetrations, and cables should be well insulated and clamped to avoid damage. All connections should be checked for continuity – the protected structure must be electrically continuous (bonded) so that anodes protect every part of it.

• Regular Inspection and Cleaning: Include CP and antifouling devices in routine maintenance inspections. Divers or ROVs should visually check hull anodes on ships and platforms for consumption levels and damage. Sacrificial anodes generally should be replaced when they are about 50% or more consumed to maintain safety margin. ICCP anodes and reference electrodes should be cleaned of any marine growth or calcareous buildup that could insulate them (a light calcareous coating is normal, but excessive deposits or biofouling on ICCP anodes can reduce current output). For MGPS, inspect the anodes at least during scheduled drydocks – copper anodes may erode or get covered in scale and will need occasional cleaning or replacement as per the manufacturer’s guidance.

• Monitoring and Record-Keeping: Track the performance of cathodic protection using measurements. For sacrificial systems, periodically perform potential surveys (using a reference electrode in water and a voltmeter) at various points on the structure to ensure the protective potential is being maintained (typically -0.8 V or more negative vs Ag/AgCl for steel). Impressed current systems usually have built-in monitoring – operators should log the hull potential readings and anode output currents regularly. Any drift in potentials or high outputs can indicate coating damage or anode deterioration, prompting corrective action. Many modern ICCP systems can be monitored remotely and even adjusted via control software; leveraging these features (or newer IoT-based remote CP monitoring sensors) can greatly improve maintenance efficiency.

• Timely Replacement and Adjustments: Plan to replace sacrificial anodes during routine drydocks or underwater maintenance windows before they are fully consumed. It’s prudent to carry some spare anodes for critical areas that might deplete faster (e.g. near splash zones or hot spots). For ICCP, calibrate the reference electrodes periodically (some systems allow checking them against a portable reference cell) and replace any that are faulty. If an ICCP system shows consistently high output (meaning it’s working hard to protect, possibly due to coating deterioration), consider cleaning the hull or touch-up painting to reduce the load on the CP system. Always follow the manufacturer’s guidelines for servicing ICCP power units – cooling fans, electrical connections, etc., should be kept in good order to prevent outages.

• Compliance with Standards: Adhere to relevant standards and regulations during installation and maintenance. Classification societies (ABS, DNV, Lloyd’s, etc.) and organizations like NACE/AMPP provide criteria for cathodic protection system design on ships and offshore structures. Ensure that the CP system is commissioned properly – for example, a polarization survey after installing ICCP to verify that the full structure is within protection potential. Similarly, MGPS installations should comply with safety standards (since they involve electrical equipment in water) and dosage regulations (not exceeding allowed biocide release levels).

By following these best practices, asset owners can achieve reliable long-term performance from both sacrificial and impressed current systems, minimizing surprises such as unexpected anode depletion, system failures, or insufficient protection. Proactive maintenance not only preserves the structure but also can save costs – for instance, keeping an ICCP system well-tuned may reduce overall fuel or power usage by avoiding over-protection, and maintaining antifouling systems prevents efficiency losses in heat exchangers and hull performance.

Environmental Considerations and Regulations

Because antifouling and cathodic protection technologies interact with the marine environment (through chemical releases or electromagnetic effects), they are subject to environmental regulations and must be managed to avoid ecological harm. A historical example is the ban on toxic TBT antifouling paints – the International Maritime Organization (IMO) adopted a treaty prohibiting tributyltin coatings effective 2008 after it was shown to cause severe harm to marine organisms and food chains​. This ban propelled the development of less harmful antifouling solutions, including low-toxicity paints and non-biocide alternatives.

Modern antifouling systems like MGPS that use copper or chlorine are also regulated to ensure they do not pollute the water. In the European Union, the use of active substances for antifouling falls under the Biocidal Products Regulation (EU BPR). Copper anode systems are permitted, but the copper ion dosage must be kept within safe limits (a few parts per billion). In fact, manufacturers ensure their systems meet these requirements – for example, Evac’s Cathelco MGPS operates at around 2 ppb copper, in compliance with EU biocide directives. This concentration is enough to prevent fouling but too low to significantly impact non-fouling marine life beyond the immediate vicinity. Likewise, any chlorine produced by antifouling anodes dissipates quickly; however, operators must be mindful of local rules on chlorine discharge (for instance, power plants often have limits on residual chlorine in cooling water outflow).

For sacrificial anodes, the environmental consideration is the release of metal ions (zinc, aluminum, etc.) into the water as the anodes corrode. Zinc anodes historically contained a small percentage of cadmium (as an activator), which is a toxic heavy metal. Recognizing this, regulators have pushed for cleaner anode compositions. In U.S. waters, the EPA’s Vessel General Permit (VGP) guidelines (2013) advise vessel operators to use less toxic anode materials when possible – specifically recommending aluminum anodes in saltwater (and magnesium in freshwater) instead of traditional zinc, to reduce the introduction of cadmium and excess zinc into the ocean. After 2013, new ship builds and dry-dock refits have largely shifted to aluminum-based anodes for seawater use, which contain no cadmium and have a more benign environmental footprint. Aluminum anodes also tend to form an inert aluminum oxide surface film as they corrode, which can limit the bioavailability of aluminum in the water. Overall, while sacrificial anodes do release metals, studies and field experience have generally shown the environmental impact to be localized and low – especially compared to the unmitigated corrosion they prevent (which would release large quantities of rust and heavy metals if the structure were allowed to corrode).

Another environmental and regulatory aspect is the prevention of invasive aquatic species transport via biofouling. When ships with heavy hull fouling travel between ports, they can carry barnacles, mollusks, or algae to new ecosystems, potentially becoming invasive species. This has become such a concern that the IMO issued guidelines for biofouling management, and countries like New Zealand and Australia have regulations requiring vessels to arrive with a clean hull or risk penalties/quarantine. Effective antifouling, therefore, not only improves performance but protects biodiversity. Governments and international bodies are increasingly encouraging technologies that minimize chemical use while preventing biofouling to address this issue​.

In summary, compliance with environmental regulations is now an integral part of using antifouling and cathodic protection systems. Operators must choose antifouling coatings and anode systems that are approved for use (with regard to biocidal ingredients), and they must monitor and record any discharges (like copper or chlorine levels) as required by law. The trend is toward greener solutions – for instance, port authorities and navies are investigating foul-release coatings (which have no biocides) and robotic hull cleaning to eventually reduce reliance on any biocidal release. In the CP realm, the move from zinc to aluminum anodes, and the use of ICCP (which theoretically releases less metal overall by using power instead of sacrificial mass), are steps aligned with environmental stewardship.

Future Trends and Innovations

Looking ahead, marine antifouling and cathodic protection technologies are evolving to become more efficient, environmentally friendly, and smart. Several notable trends and innovations are on the horizon:

• Eco-Friendly Antifouling Methods: With growing regulatory pressure to reduce biocide use, there is significant interest in non-toxic antifouling solutions. Futuristic approaches include ultra-smooth foul-release coatings (e.g. silicone or fluoropolymer based paints that prevent organisms from sticking strongly, so they wash off when the vessel is in motion) and biomimetic surfaces that mimic shark skin or other natural antifouling surfaces. Underwater robotic cleaners are also being developed to routinely groom hulls and keep them clean without drydocking. In some sectors, keeping vessels out of water when not in use (“dry docking” small craft or using floating docks for idle periods) is being adopted to avoid fouling buildup. For niche applications like niche areas and sea chests, built-in ultraviolet (UV) lighting systems have shown promise in sterilizing incoming water and preventing larvae settlement, and ultrasonic transducers mounted on hulls can create ultrasonic vibrations that deter algae growth. These methods produce no chemical pollution, aligning with future environmental goals. According to industry analyses, the future of antifouling will likely be a mix of such technologies – e.g. periodic robot cleaning plus low-friction coatings – to achieve zero harmful biocide release​.

• Advancements in Cathodic Protection: While cathodic protection is a mature field, innovations are occurring in materials and monitoring. Improved anode alloys are continually being developed – for instance, aluminum-zinc-indium alloys have largely replaced older zinc anodes, offering higher efficiency and no toxic elements. Research is ongoing into self-healing coatings that work in tandem with CP, where the coating releases corrosion inhibitors if damaged, reducing CP demand. On the ICCP front, modern systems are incorporating digital control and remote monitoring capabilities. Impressed current systems can now be tuned via software, and data on hull potential, anode current, etc., can be sent to maintenance teams onshore in real time. This allows for predictive maintenance – if an anode is deteriorating or a coating has been damaged (requiring more current), the change is spotted early and can be addressed. The use of IoT sensors on pipelines and offshore structures to monitor CP status is growing, which will likely become a standard part of integrity management. Future ICCP designs might also integrate with overall asset management systems, adjusting protection levels based on operational context (for example, reducing current output when a ship is in port and fouling risk is higher, to avoid chlorine production that could harm marine life in enclosed harbors, then ramping up at sea).

• Hybrid and Integrated Systems: We can expect to see more integration between antifouling and anti-corrosion systems. One example is combining ICCP with antifouling anodes in a unified system – some companies already offer control panels that handle both hull ICCP and MGPS from one unit, optimizing the overall current distribution. Another concept being explored is using CP current in novel ways for antifouling: for instance, applying an intermittent current or specific potential profile on a surface to discourage biofilm formation (a kind of “electrochemical antifouling” approach). While still in R&D, this could one day complement traditional methods.

• Stricter Environmental Regulations Driving Innovation: As regulations tighten, especially on biocides, the industry is pushed to innovate. Some regulators have proposed phasing out all biocidal antifouling paints in the future​, which would require a complete shift to solutions like UV, ultrasound, or ultra-smooth coatings. This is spurring research into next-generation coatings that use nanotechnology or surface microtexturing to physically resist fouling growth without leaching chemicals. The drive for sustainability is also evident in sacrificial anode usage – there is interest in anode recycling (recovering metal from spent anodes) and reducing anode mass by utilizing ICCP where feasible.

Overall, the future of marine growth prevention and cathodic protection will likely be characterized by smarter systems that are both kinder to the environment and more efficient in protecting assets. Ships and offshore structures could have “intelligent hulls” that actively monitor and protect themselves against both corrosion and fouling, with minimal human intervention. While the fundamental challenges of marine fouling and corrosion will always be present, ongoing innovation aims to control these issues in a way that maintains performance, reduces costs, and meets the increasing environmental expectations of the maritime industry.

Conclusion

Marine fouling and corrosion are twin enemies of any structure in the ocean, but through a combination of antifouling measures and cathodic protection, we have the tools to combat them. Sacrificial anode systems and ICCP systems each play a pivotal role in protecting assets – from the smallest boat to the largest offshore platform – extending their service life and ensuring safe, efficient operations. Sacrificial anodes offer simplicity and proven reliability, while impressed current systems provide power and precision; used together with modern antifouling techniques (coatings, MGPS, etc.), they form a comprehensive defense against the harsh marine environment. The choice of system must be tailored to the asset and its operational profile, taking into account regulatory requirements and environmental responsibility. By understanding the strengths of each approach and following best practices in design and maintenance, operators can significantly mitigate biofouling buildup and corrosion damage.

In essence, marine growth prevention using anode-based systems represents a marriage of biology and electrochemistry: it leverages advanced materials and electrical control to keep nature’s growth at bay and preserve man-made structures. As the industry moves forward, continuous improvement in these technologies – making them greener, smarter, and more robust – will ensure that ships sail smoother, platforms stand stronger, and pipelines flow longer, all while coexisting more harmoniously with the marine ecosystem.

Corrosion is a constant threat to metal structures in industries ranging from oil & gas to maritime. Cathodic protection (CP) is a proven technique to control corrosion, and one of its most common implementations uses galvanic anodes (also known as sacrificial anodes). In a galvanic CP system, a metal alloy anode is electrically connected to the structure to be protected. This anode metal is chosen because it has a more “active” (more easily oxidized) electrochemical potential than the protected metal. As a result, the anode corrodes (oxidizes) in preference to the structure, effectively sacrificing itself to prevent corrosion of the asset​. By corroding, the anode continuously supplies electrons to the structure (making the structure a cathode), which stops the oxidation (rusting) reaction on the protected metal​. In simple terms, the galvanic anode “takes the beating” so that your pipeline, tank, or ship hull remains intact.

A typical galvanic (sacrificial) anode installed on a steel structure (ship hull). The anode (the gray block) is deliberately made of a metal that corrodes preferentially, as evidenced by the white oxidized layer. By sacrificing itself, it provides cathodic protection to the surrounding steel, preventing the hull from rusting​.

How Galvanic Anodes Work: The Science Behind Sacrificial Protection

Galvanic anodes protect structures through basic electrochemistry. When the anode is connected to a steel structure in the presence of an electrolyte (such as soil or water), a galvanic cell is formed. The anode acts as the anodic site, undergoing oxidation (metal atoms losing electrons to form metal ions), and the structure becomes the cathodic site, where reduction reactions consume the electrons. For example, in a typical corrosion scenario, iron (Fe) in steel would oxidize to Fe²⁺ and produce rust; but with CP, a sacrificial anode (like zinc or magnesium) oxidizes instead, supplying electrons that convert the rust-forming agents (like oxygen and water) into harmless hydroxide ions at the steel surface​. This prevents the iron in the steel from oxidizing. Essentially, the sacrificial anode turns the structure into a cathode (hence cathodic protection) by continually feeding it electrons, stifling the corrosion reaction.

Several conditions are required for this process to work effectively. First, the anode material must have a significantly more negative electrochemical potential than the structure. Galvanic anodes are made from alloys specifically chosen to be more active (more easily corroded) than steel, so that a natural voltage difference exists​. Common CP anode metals like magnesium, zinc, and aluminum all sit lower (more anodic) on the galvanic series than iron or steel, which ensures they will corrode first. Second, the anode and the structure must be electrically connected (usually by a direct metal-to-metal connection or a cable) to provide a return path for electron flow​. Third, both the anode and structure must be in a common electrolyte (such as soil, water, or even moist concrete) so that ions can carry current between them. When these conditions are met, a galvanic cell is established: the anode dissolves (releasing metal ions into the electrolyte), and electrons flow through the metal connection to the structure, thereby polarizing the structure’s surface to a more negative potential (protecting it from further oxidation).

From a scientific perspective, galvanic CP is akin to creating a small battery or cell where the structure is the positive terminal (cathode) and the sacrificial anode is the negative terminal. The potential difference between the two metals drives a current. Notably, the driving voltage of a galvanic anode system is limited by the difference in natural potentials of the metals – usually on the order of up to about 1 volt or less​. This passive current is often enough to protect the structure if properly designed. The protected metal surface becomes saturated with excess electrons, which inhibits its oxidation. Any would-be corrosion reactions are satisfied by electrons from the anode instead of metal atoms from the structure. In summary, galvanic anodes work by sacrificing a more reactive metal to save a less reactive one, leveraging fundamental electrochemical principles to halt corrosion.

Common Anode Materials and Their Uses

Not just any metal will work as a galvanic anode – it must be suitably active compared to the structure. In practice, three metals (and their alloys) are predominantly used as galvanic anodes: magnesium, zinc, and aluminum​. Each has distinct properties that make it suitable for certain environments and applications:

• Magnesium (Mg): Magnesium has the most negative (active) electrochemical potential among common anode materials​. This high driving voltage makes Mg anodes very effective in high-resistivity electrolytes like dry soils or fresh water, where a strong push is needed to drive protective current. They are primarily used for buried on-shore pipelines and underground structures in soil, as well as for freshwater applications​g. Magnesium anode rods are also famously used in domestic water heaters to protect the tank from corrosion​. One caution with magnesium’s high reactivity is the risk of over-polarizing the steel: if the steel becomes too negative, it can cause hydrogen gas to evolve on the steel surface, which may lead to hydrogen embrittlement or coating disbondment over time​. To avoid this, magnesium is used judiciously (or a less driving metal like zinc is chosen) when protecting more delicate systems that could be adversely affected by its aggressive polarization.

• Zinc (Zn): Zinc is a time-tested galvanic anode material with a lower driving voltage than magnesium. It is well-suited for lower-resistivity environments such as wet soil, brackish water, and seawater​. Zinc anodes are commonly alloyed with small amounts of other elements (like aluminum) to improve performance, and they are widely used on ship hulls, boat rudders and propellers, offshore pipelines, and marine structures​. A major advantage of zinc is its reliability and stable behavior – it tends to corrode in a very controlled manner. Zinc anodes also pose less risk of overprotection; their lower voltage output is actually beneficial when trying to avoid issues like hydrogen embrittlement on high-strength steels​. However, zinc has some practical limits: at elevated temperatures (for example, on hot pipelines or tank surfaces) zinc can passivate, meaning it forms an oxide layer that stops it from corroding further​. If a zinc anode passivates, it will stop supplying protective current. Thus, zinc is not recommended for high-temperature applications. In normal ambient conditions, especially in seawater, zinc anodes are very dependable.

• Aluminum (Al) Alloys: Aluminum anodes are usually made from aluminum alloys (often with zinc and indium or tin) that prevent the natural alumina film from passivating the surface​. Aluminum provides an intermediate electrochemical potential – not as negative as magnesium, but more than zinc – and it has an extremely high current capacity per weight. In fact, aluminum anodes have a higher amp-hour capacity (more energy per kilogram) than both zinc and magnesium, which means they can deliver a lot of protective current relative to their mass​. They are extensively used in marine environments – for example, protecting offshore platforms, ship hulls, submerged pipelines, and marine engines – particularly in seawater​. Because aluminum anodes are lighter by volume, they add less weight to structures (an important consideration for ships). On the downside, aluminum’s behavior can be less predictable; if the water’s chloride content is too low (e.g. in brackish or fresh water below a certain salinity), aluminum anodes may passivate and stop working​. For this reason, aluminum anodes are usually specified for full-strength seawater or saline environments, and they are often designed with activator elements (like a bit of tin or indium) to ensure continuous operation. One niche caution: aluminum anodes, if they strike a rusty steel surface (during handling or if they detach), can produce a thermite reaction spark, so there are restrictions on using them in certain tanks where an anode might fall and hit rusty steel. In general, though, aluminum anodes are highly effective for offshore structures and shipboard use, where their light weight and high capacity offset their more careful application requirements.

Other metals are occasionally used in sacrificial roles (for example, cast iron anodes can protect copper in specific cases​), but magnesium, zinc, and aluminum cover the vast majority of galvanic CP needs. These anodes are manufactured in various shapes – blocks, rods, plates, ribbons – to suit different installations​g. The choice of anode material depends on the environment’s resistivity, the temperature and conditions, and the materials of the structure being protected.

Advantages of Galvanic Anode CP Systems

Galvanic anode systems are popular for many corrosion protection projects because of several practical advantages:

• No External Power Required: Galvanic CP systems are self-powered. The galvanic anodes generate protective current by virtue of their natural potential difference with the structure, so no external DC power source or wiring is needed​. This makes such systems ideal for remote locations or anywhere power supply is unreliable. It also eliminates ongoing electricity costs.

• Simplicity and Low Maintenance: With no rectifiers, power cables, or impressed current controllers in play, sacrificial anode systems are very simple. Once installed, they generally require minimal maintenance – there are no electronics to adjust, and no risk of power failure disrupting protection​. Periodic inspection is recommended (to check anode consumption and potential levels), but routine upkeep is much less intensive than impressed current systems. This simplicity often translates to high reliability in the field.

• Ease of Installation: Installing galvanic anodes is straightforward. Typically, anodes are either bolted or welded to the structure (or buried nearby and connected by a cable). There’s no need to install power supplies or run long electric feeds. For example, attaching a zinc anode to a ship hull or a magnesium anode to a pipeline can be done with basic tools. The comparative ease of deployment can reduce installation time and cost​.

• Localized Protection & No Stray Currents: Because the driving voltage is relatively low, galvanic anodes produce gentle, localized currents. This means stray current interference (unintended currents affecting nearby structures) is uncommon​. The protection tends to be confined to the structure of interest and its immediate vicinity. In contrast, impressed current systems (with higher voltages) can cause stray currents that need careful mitigation. Sacrificial anodes are naturally distributed along the structure, offering targeted protection without complex output adjustments.

• Inherently Safe from Overprotection: Galvanic anodes have a limited voltage output, which makes overprotection unlikely​. Overprotecting a structure (driving it too negative) can cause issues like coating damage or hydrogen embrittlement; with galvanic anodes, the system usually self-regulates because as the structure becomes more protected (more cathodic), the driving current naturally tapers off. This makes galvanic systems quite forgiving – they tend not to overshoot the protection, especially when using zinc or aluminum anodes that have moderate potentials. In environments where overprotection is a concern (such as protecting high-strength steel or well-coated pipelines), a galvanic system can be a safer choice due to this self-limiting nature​.

• Cost-Effective for Small to Medium Structures: For many smaller structures or well-coated structures with low current demands, galvanic CP is very cost-effective. The anodes themselves and their installation are often cheaper than setting up an entire impressed current system (with a rectifier, cables, deep groundbeds, etc.). When the current requirements are modest, the total life-cycle cost of periodically replacing consumed anodes can be quite low compared to the upfront and maintenance costs of an impressed system. Additionally, in some cases the avoidance of power infrastructure (trenches, conduits, electrical permits) is a major cost saver​.

In summary, galvanic anode CP systems shine in scenarios where simplicity, reliability, and independence from power grids are priorities. They offer a “fit-and-forget” corrosion solution in many applications, ensuring continuous protection without constant attention.

Limitations and Challenges of Galvanic Anodes

No solution is without drawbacks, and galvanic anode systems have several important limitations to consider:

• Limited Driving Voltage and Current: Sacrificial anodes only provide as much driving force as the natural voltage difference between the anode metal and the structure metal – typically on the order of 1 volt or less​. This means the protective current output is inherently limited. For large structures, or structures with poor coatings (high current demand), it may be impractical to get enough current from galvanic anodes alone​. In high-resistivity environments (e.g. very dry or rocky soil), the small voltage may not overcome the resistance to get adequate current flow. Impressed current systems, by contrast, can drive much higher voltages to push current through resistive media. So, galvanic CP is generally suited to smaller or well-coated structures where current requirements are modest; very large structures (long pipelines, huge tanks, etc.) often need supplemental impressed current to achieve full protection.

• Finite Anode Life (Consumption): By design, galvanic anodes get consumed as they work. They are typically made of relatively soft, anodic metal that gradually dissolves into the electrolyte. The consumption rate can be quantified (often in kilograms per ampere-year) – for instance, a certain mass of zinc might be consumed per year for a given current output​. This means galvanic anodes have a limited lifespan and will periodically need replacement. In high-corrosion environments or where a lot of current is needed, the anodes can waste away faster (sometimes within just a few years if undersized). Planning for maintenance is essential: access must be provided to replace spent anodes (for example, dry-docking a ship to renew its hull anodes or excavating around a pipeline to install new bracelets). This ongoing consumption is a trade-off for the lack of an external power source – the anode material is essentially the “fuel” for the protection current.

• No Control or Adjustability: Galvanic systems are self-regulating based on the environment, which is an advantage for simplicity but a disadvantage for control. There’s no external power supply to tune, so you cannot easily increase the current if protection is found inadequate, other than by adding more anodes or changing to a more active alloy. The output current is determined by the electrode potentials and the circuit resistance (including the electrolyte’s resistivity)​. If conditions change – for example, the electrolyte resistivity rises in a drought or the protected structure’s coating degrades – a fixed galvanic system might not keep up because it can’t boost its voltage. Impressed current systems allow adjusting the rectifier to deliver more current in such cases, but galvanic systems offer limited real-time control​. This means careful design upfront (choosing the right number and type of anodes) is crucial, and even then, the system’s performance can vary with environmental conditions.

• Bulk and Weight: Sacrificial anodes must be physically attached or placed near the structure, and they often add weight or bulk. For a ship or a submarine, dozens of large aluminum or zinc anodes might be bolted to the hull – this is added weight and can slightly increase drag in the water​. On pipelines, anodes are sometimes cast as collars or plates attached to the pipe, which increases the overall diameter in spots (potentially an issue for tight clearance installations or pigging tools). While usually the weight and size of anodes are not deal-breakers, they can be a logistical factor. Impressed current systems, in contrast, use inert anodes that may be smaller or fewer (since the current can be cranked up), although they come with other equipment. In applications where extra weight or protuberances are undesirable (for example, aerodynamic surfaces or very space-constrained systems), galvanic anodes might pose a challenge.

• Effectiveness Limited by Environment: The environment strongly dictates galvanic anode performance. In high-resistivity soils, as noted, magnesium anodes might be needed (due to their higher voltage), and even then the current might be marginal​. In contrast, in low-resistivity seawater, aluminum or zinc anodes work well but also dissolve faster (so you must ensure enough mass for the design life). If the water chemistry is unusual (e.g. low chloride for aluminum anodes, or high temperature for zinc anodes), the anodes can become less effective due to passivation​. Furthermore, galvanic anodes only protect the structure that they are electrically connected to; if you have multiple separate structures, each needs its own anodes or bonding, otherwise unprotected parts remain anodic and corrode. In summary, galvanic CP is not a one-size-fits-all – it must be tailored to the environment, and extreme conditions can limit its usefulness.

Despite these limitations, many of them can be mitigated with good engineering. For instance, if a structure is too large for purely galvanic CP, engineers might use a hybrid approach (galvanic anodes for certain areas or as backup, and impressed current for the bulk). Or they might design sacrificial anode systems with corrosion allowances – installing enough anode mass to last a desired period (e.g. 20 years) before replacement. Understanding these trade-offs is key to applying galvanic anodes effectively.

Common Applications of Galvanic Anodes

Galvanic anode cathodic protection is employed across a wide range of industries to protect critical assets. Some of the most common applications include:

• Underground Pipelines and Buried Infrastructure: Many buried oil and gas pipelines, as well as water distribution pipelines, use galvanic anodes to prevent external corrosion. For example, magnesium anodes are often spaced along a coated steel pipeline to protect it in areas with higher soil resistivity​. Sacrificial anodes are especially popular for pipelines in remote areas where bringing in power for an impressed current system would be difficult or for short pipeline sections and tie-ins. In addition, underground storage tanks (USTs) for fuel or water and even fire hydrant assemblies can be protected by attaching zinc or magnesium anodes to their structure. The approach is straightforward and has been in use for decades to extend the life of buried infrastructure.

• Marine Structures and Ship Hulls: Galvanic anodes are perhaps most visibly used in marine environments. If you’ve ever seen a boat or ship in dry dock, you might notice chunky metal blocks (often zinc or aluminum) attached to the hull – those are sacrificial anodes. Ships, boats, and barges have zinc or aluminum anodes on their hulls, rudders, and propellers to combat corrosion from seawater. Offshore oil & gas platforms and jetty pilings similarly employ large aluminum anode blocks to protect submerged steel components. Even marine engines and heat exchangers that use seawater for cooling will have zinc anode plugs to protect internal passages. This widespread use in maritime settings is due to seawater being an aggressive electrolyte; galvanic anodes provide continuous protection as long as they are present. Many modern ships use a combination of impressed current and galvanic anodes (impressed for bulk protection and sacrificial as backup or for hard-to-reach spots), but smaller vessels often rely purely on galvanic anodes. The effectiveness in these applications is well-proven – for instance, a properly anoded ship hull will see dramatically reduced rusting, with the anodes visibly dissolving instead of the steel plates.

Galvanic anodes are widely used on ships and other marine structures. In the image, the rectangular white plates on the rudder of this ship are zinc anodes installed to protect the hull, rudder, and propeller from seawater corrosion. Such anodes gradually dissolve instead of the ship’s steel, preserving the vessel’s integrity​.

• Storage Tanks and Internal Vessel Protection: Above-ground storage tanks (ASTs) that rest on soil often use galvanic CP to protect their bottoms (which are in contact with soil or sand foundations). Magnesium or zinc anodes can be buried in the sand beneath a tank or attached around the perimeter to prevent underside corrosion of the tank floor. This is crucial for large tanks holding petroleum or chemicals, as a perforation in the bottom can cause leaks and environmental damage. Galvanic anodes provide a passive, around-the-clock safeguard for these tank bottoms. Additionally, internal surfaces of water tanks or vessels that contain aggressive waters can be protected by hanging sacrificial anodes inside. A good example is water heaters: the magnesium anode rod inside a hot water heater tank is a form of cathodic protection, preventing the tank from rusting by sacrificing the rod​. Industrial boilers, condensers, and heat exchangers sometimes use sacrificial anodes on the water side as well.

• Reinforced Concrete Structures: An interesting extension of galvanic anode usage is in concrete infrastructure. Steel rebar embedded in concrete can corrode if chloride ions (from deicing salts or marine exposure) penetrate the concrete. To mitigate this, engineers have developed zinc-based sacrificial anodes that can be embedded in concrete repairs or attached to rebar. These special anodes corrode in place of the rebar, offering cathodic protection to the steel inside the concrete. This technique is used in patch repairs for bridges, parking garages, and marine concrete piers. While this is a more specialized application, it underscores the versatility of galvanic anode protection – even within a concrete matrix acting as the electrolyte.

These examples highlight where galvanic anodes excel: buried or submerged environments where metals are at high risk of corrosion and where a simple, autonomous protection system is desired​. Industries such as oil & gas, maritime, water utilities, and infrastructure maintenance routinely employ sacrificial anodes to extend the service life of assets. The approach scales from something as small as a home water heater to as large as an offshore pipeline network.

Conclusion

Galvanic anodes are a cornerstone of corrosion protection technology. By harnessing the natural reactivity of certain metals, we can shield more valuable structures from the relentless effects of corrosion. In this post, we explored how galvanic anodes work (essentially creating a protective electrochemical cell where the anode willingly corrodes), the science driving their effectiveness (differences in electrochemical potential and the creation of cathodic surfaces), the materials (magnesium, zinc, aluminum and their alloys, each suited to particular conditions), as well as the advantages (simplicity, reliability, no external power) and limitations (limited output, consumption, lack of adjustability) of this approach. We also looked at common applications across industries – from pipelines underfoot to ships at sea – where sacrificial anodes reliably guard against rust.

For clients and engineers considering corrosion protection strategies, galvanic anode systems offer an attractive combination of effectiveness and simplicity. They are especially valuable for protecting isolated or smaller structures and in cases where infrastructure or maintenance resources are limited. However, understanding the environmental conditions and design requirements is key, since a galvanic system must be properly tailored to ensure adequate protection throughout the asset’s life.

In practice, many corrosion protection programs use a mix of methods – sometimes starting with galvanic anodes for initial protection (or as a backup), and then possibly incorporating impressed current CP for larger demands. The right solution depends on the specific scenario. But the fundamental concept remains powerful: by sacrificing a small amount of a cheap metal, we can save a lot of a critical metal. Galvanic anodes continue to be a trusted, cost-effective, and proven tool in the fight against corrosion, helping industries maintain the integrity and safety of their infrastructure for the long run.

Basic Principles of Cathodic Protection

At its core, cathodic protection is a method of preventing corrosion by electrochemical means. Corrosion of metals (like steel) in soil or water is an electrochemical process where parts of the metal surface become anodic (giving up electrons and metal ions) and corrode, while other parts become cathodic. CP works by ensuring the entire metal structure behaves as a cathode, so it receives electrons rather than losing them​. This is achieved by introducing another piece of metal that is more anodic (active) than the structure:

• In a galvanic CP system, the active metal (sacrificial anode) is directly connected to the structure. The anode has a naturally more negative electrochemical potential, so it preferentially oxidizes (corrodes), protecting the cathodic structure by supplying it with electrons​. Essentially, the sacrificial anode “gives itself up” so the protected metal doesn’t corrode.
• In an impressed current CP (ICCP) system, an external DC power source (such as a rectifier) is used to drive current from an inert anode onto the structure, forcing the structure to become cathodic. This method doesn’t rely on the natural potential difference alone; instead, it imposes a protective current using an adjustable power supply​.

In both cases, the electrochemical reactions that would normally consume the structure are redirected to the anode. The protected metal surface is polarized to a more negative potential, which mitigates the oxidation reaction (metal loss) on that surface​. A well-designed CP system will polarize a metal to below its corrosion potential, often verified by measuring that the structure’s potential has shifted to a certain value (e.g., –850 mV vs Cu/CuSO₄, a common criterion) indicating effective protection.

Why is CP so important in oil & gas? Without CP, pipelines and tanks can weaken and leak, leading to fires, explosions or spills. CP is thus pivotal for safety (preventing catastrophic failures), environmental protection (avoiding oil or chemical leaks into ecosystems), and asset preservation (extending the life of expensive infrastructure)​. By maintaining structure integrity, CP helps operators avoid costly replacements and downtime​. It’s also often a regulatory requirement – for example, pipeline safety regulations mandate CP on buried pipelines – making it essential for compliance​. In summary, cathodic protection turns corrosion control from a reactive repair issue into a proactive defense strategy, which is invaluable for large-scale oil and gas operations.

Types of Cathodic Protection Systems

Cathodic protection broadly comes in two flavors: Galvanic (Sacrificial Anode) systems and Impressed Current Cathodic Protection (ICCP) systems. Both achieve the same goal (protecting a structure by making it a cathode), but they do so in different ways, each with its own use cases, advantages, and considerations.

Galvanic (Sacrificial Anode) Cathodic Protection

In galvanic CP systems, the protected structure is connected to one or more sacrificial anodes made of a metal alloy that is more active (more easily corroded) than the structure’s material. Common sacrificial anode materials are zinc, aluminum, and magnesium alloys, which are all anodic to steel​. When the anode and the steel structure are electrically connected in an electrolyte (soil, water, etc.), a natural galvanic cell forms: the anode corrodes (oxidizes) and releases electrons, and the steel structure (cathode) receives those electrons, which prevents it from corroding. The driving force is the difference in electrode potential between the two metals​– since zinc/magnesium have a more negative potential than steel, they will be consumed in preference to the steel.

Key characteristics of galvanic CP:

• Self-powered operation: No external power is needed. The electrochemical potential difference provides the current naturally.
• Simplicity: These systems are relatively simple to design and install. Typically, you attach or bury the sacrificial anodes near the structure and wire them together. As long as there is good electrical continuity, the anodes will begin protecting the structure.
• Common applications: Galvanic anodes are often used for smaller structures or short pipelines, and in situations where power is not readily available. For example, they are widely used on underground pipelines, well casings, small storage tanks, and subsea pipelines by strapping zinc/aluminum anodes directly onto the structure​. Offshore platforms often have dozens of aluminum alloy anode blocks welded to the jacket to protect submerged steel (visible as chunky bars on the structure​). Even a typical ship’s hull uses zinc anode bars for galvanic protection.
• Finite anode life: Because the anode metal actively corrodes, it gradually gets consumed. Periodic replacement of anodes is necessary once they’ve been mostly dissolved​. The initial design must ensure the anodes have enough mass to last until the next planned maintenance (years or decades). For example, a sacrificial anode on a pipeline or platform may be designed for a 20-year life, after which divers or maintenance crews install new anodes.
• Limited driving voltage: Galvanic anodes have a limited electrical “push” (their natural potential difference). This means they might not be able to deliver enough current in high-resistivity environments (e.g. very dry or rocky soils) or for very large structures requiring high current. If the structure is huge or the environment is resistive, the protection may be patchy or insufficient with sacrificial anodes alone​.

Overall, galvanic CP is cost-effective and maintenance-light for smaller scale applications. It’s inherently safe (no external power to malfunction) and straightforward, but designers must account for anode depletion and ensure anodes are periodically monitored and replaced.

Impressed Current Cathodic Protection (ICCP)

In ICCP systems, the protective current is supplied by an external DC power source (often a rectifier connected to AC mains, or solar/battery systems in remote areas). This current is fed into the structure via inert anodes that are typically made of long-lasting materials like graphite, silicon iron, or mixed metal oxide coated titanium. Unlike sacrificial anodes, these impressed current anodes don’t significantly corrode themselves – their job is to inject current, not to be consumed. The external power supply drives a continuous flow of electrons to the structure, polarizing it cathodically.

Key characteristics of ICCP:

• High output and control: ICCP can deliver a much larger protective current than galvanic anodes because the driving voltage can be adjusted via the rectifier (often up to several tens of volts if needed). This makes ICCP suitable for large structures and more aggressive environments where galvanic anodes would not provide sufficient protection​. For instance, long cross-country pipelines, large diameter offshore pipelines, tank farms, and massive offshore platforms often use ICCP to ensure enough current reaches all areas.
• Adjustability: Operators can control the protection level by adjusting the rectifier output. As corrosion conditions change (e.g., coating degrades over time or environmental resistivity changes), the current can be increased or decreased to meet the protection criteria. This level of control is a big advantage in asset integrity management – you can respond to survey data by “tuning” the CP system.
• Long-term protection: Since the anodes are not sacrificial (or only very slowly consumed), ICCP systems can operate for decades with minimal anode maintenance. The primary consumable is the electricity. This means fewer physical replacements – a clear benefit for inaccessible locations (e.g., deep underwater). For example, an offshore platform may use ICCP anodes that last the life of the structure, eliminating the need for diver replacement of dozens of individual sacrificial anodes.
• Complexity: The trade-off for high performance is higher complexity. ICCP systems require power units, wiring, and monitoring equipment that must be maintained. There is a possibility of component failures – e.g., power loss, short circuits, or anode cable damage – which could leave the structure unprotected if not quickly addressed. Thus, ICCP demands regular inspection of the rectifier and system health to ensure continuous operation​.
• Applications: ICCP is preferred for large-scale applications. Examples include: long offshore pipelines fed by a platform-based power source, cross-country pipelines with periodically spaced transformer-rectifier stations, offshore production platforms and FPSOs that use impressed current to protect hulls and sub-sea equipment, and tank farms or large storage tanks where one rectifier can protect multiple tanks or a big tank’s bottom plate. ICCP systems are also standard on most ships for hull protection (often visible as ICCP control panels on vessels) to reduce fuel costs by minimizing hull fouling and corrosion.

Both galvanic and ICCP systems fundamentally do the same job – they supply electrons to the structure to stifle corrosion. The choice often comes down to scale, environment, and logistics. Often, engineers even use a hybrid approach: for example, an offshore platform might have sacrificial anodes for smaller components and an ICCP system for the main hull, or a subsea pipeline might start with ICCP current from a platform and supplemental bracelet anodes along its length​. The next section compares these systems head-to-head.

Galvanic vs. Impressed Current: Pros and Cons

Choosing between a galvanic (sacrificial anode) system and an impressed current system is a critical design decision. Here’s a comparison of their pros and cons for oil and gas applications:

• Galvanic CP (Sacrificial Anodes):
  • Pros: Simple and reliable (no external power source to fail), easy to install in the field, inherently safe; minimal ongoing operational oversight (anodes self-regulate their output based on corrosion demand)​. Great for remote locations where power is unavailable. Lower risk of overprotection (the system can’t easily overshoot and cause issues like hydrogen embrittlement, since it’s self-limited by galvanic potential).
  • Cons: Limited current capacity – not suitable for very large structures or high-resistivity environments; anodes get consumed over time and require replacement periodically​. Can be bulky – attaching enough anode material for long-term life might add weight or require many anodes (e.g., hundreds of aluminum anodes on a long pipeline). The protective current cannot be adjusted aside from adding or removing anodes, making fine-tuning difficult.
• Impressed Current CP (ICCP):
  • Pros: High output capability – can protect large structures or long pipelines by delivering substantial current​. Adjustable and controllable – current output can be tuned to optimal levels, and one system can protect a wide area or multiple structures (within isolation limits). Anodes have extremely long life (often 20+ years) without replacement, providing long-term, continuous protection​. Ideal for aggressive conditions where sacrificial anodes would rapidly deplete.
  • Cons: More complex and requires external power, which means higher installation cost and the need for continuous electricity supply (and backup considerations). Demands regular monitoring and maintenance – rectifiers, cables, and anodes must be checked to ensure they are functioning​. If misadjusted, ICCP can cause overprotection, leading to issues like coating disbondment or hydrogen evolution. Also, ICCP systems can potentially interfere with nearby pipelines or structures (stray currents), requiring careful design and mitigation measures.

In practice, engineers evaluate factors like asset size, location, coating quality, maintenance resources, and project lifespan when deciding on CP system type. Often a combination is used: for example, a remote pipeline may start with ICCP near facilities and use galvanic anodes in far-off sections where power isn’t feasible, or a storage tank might use galvanic anodes as a backup to an ICCP system. The goal is always a reliable, economical solution that meets corrosion prevention objectives throughout the asset’s life cycle.

Applications of Cathodic Protection in Oil & Gas

Cathodic protection is ubiquitous in oil and gas because virtually any steel structure exposed to soil, water, or moist environments is vulnerable to corrosion. CP is applied to a wide range of assets, often in conjunction with protective coatings and other measures, to ensure long-term integrity. Below, we explore how CP is used across various oil & gas infrastructure:

Buried Onshore Pipelines

Pipelines are the arteries of the oil and gas industry, stretching over thousands of kilometers to transport crude oil, natural gas, and refined products. Most onshore transmission pipelines are made of carbon steel and are buried underground – an environment where moisture, soil chemistry, and stray currents can aggressively corrode steel. Cathodic protection is a standard requirement for buried pipelines to prevent external corrosion that could cause leaks or ruptures. In fact, in many countries, pipeline safety regulations mandate CP for all buried steel pipelines, with specific criteria for protection levels.

How it’s implemented: Onshore pipelines are typically coated with a high-quality external coating (like fusion bonded epoxy or polyethylene) to serve as the primary corrosion barrier. CP acts as a backup to protect any coating imperfections (holidays) or damage. “Oil and gas pipelines are generally protected from corrosion by a barrier coating and cathodic protection (CP) system, a combination that is very effective,” as noted in industry guidance​. The CP system for a long pipeline often uses Impressed Current Cathodic Protection: distributed anodes (such as graphite or MMO anode beds) are placed at intervals along the pipeline, connected to transformer-rectifier units that drive protective current onto the line. These rectifiers are usually located at pipeline stations or along the route and are powered by grid electricity or solar panels in remote areas.

For smaller pipeline sections or gathering lines in remote fields, galvanic anodes (magnesium alloy, for example) may be used instead of ICCP. Magnesium anodes can be buried alongside the pipeline at test stations or key points and electrically connected to the pipe. They’ll provide CP current without any external power – a simple solution for short or low-risk lines. However, for long-distance pipelines or highly corrosive soils, galvanic anodes alone are usually not sufficient, hence the preference for ICCP on mainlines​.

Design considerations: Pipelines are often sectioned by insulating joints so that CP currents can be confined to target areas. Each section’s CP system is designed based on pipe length, diameter, coating quality, and soil resistivity. Criteria like achieving a polarized potential of –850 mV (Cu/CuSO₄ reference) along the pipeline are used to judge effectiveness​. Close interval potential surveys (CIPS) are performed to verify that the pipe is adequately polarized continuously along its length, and areas of low protection (or interference from foreign pipelines) are addressed. Pipeline CP design also accounts for stray current interference (for instance, near high-voltage AC transmission lines or other pipelines) – bonds or mitigation measures may be installed to drain stray currents and ensure the pipeline stays protected.

Real-world note: For major pipeline operators, CP is integral to pipeline integrity management. Companies will have CP test stations located every few kilometers along pipelines where technicians can measure pipe-to-soil potentials. Modern systems include remote monitoring units that automatically report CP readings back to a control center, ensuring any drop in protection level is quickly detected. By combining robust coatings with CP, operators can achieve pipeline lifespans of decades while preventing external corrosion threats​.

Subsea (Offshore) Pipelines

Subsea pipelines (those laid on the seabed or buried below it) face a harsh corrosive environment – constant exposure to saltwater. Yet they are just as critical, carrying oil or gas from offshore platforms to shore or between subsea facilities. Cathodic protection is literally a lifeline for these pipelines, since a failure on the ocean floor is extremely difficult and costly to repair.

Common approach: Nearly all subsea pipelines employ Galvanic sacrificial anode systems as the primary CP method. If you’ve seen photos of offshore pipelines, you might notice bracelet anodes: these are ring-like cast anodes (often zinc or aluminum alloy) clamped at intervals on the pipeline. They are designed based on the pipe’s diameter and length, such that their collective output can protect the entire pipeline for its design life. A typical design might have an aluminum anode bracelet every few tens of meters. This method has been proven over decades. “The most cost-effective and reliable method of providing cathodic protection [for offshore pipelines] is the use of zinc or aluminum alloy bracelet anodes. This method has served the pipeline industry well for many years.”​.

In shallow waters or short flowlines, these galvanic anodes are more than sufficient. For very long offshore pipelines (e.g., a gas export pipeline from an offshore field to an onshore terminal), engineers may supplement galvanic anodes with ICCP – often by connecting the pipeline electrically to an impressed current system located on an offshore platform or at the landfall. In deeper water, some newer systems include impressed current sleds (anodes with power) that sit on the seabed and energize the line. However, the reliability and simplicity of sacrificial anodes (with no moving parts or external power needed subsea) make them a favorite. They simply corrode slowly and do their job for 20-30 years.

Design considerations: Subsea pipeline CP design must account for coating quality, seawater resistivity (which varies with temperature and salinity), and oxygen levels. Offshore, the environment generally allows anodes to work very efficiently (seawater is a good electrolyte), so sacrificial anodes can often deliver high currents. The anodes are typically aluminum-zinc-indium alloys, chosen because aluminum anodes have a high amp-hour capacity and a favorable performance in seawater. Design codes like DNVGL-RP-B401 provide formulas to calculate anode requirements based on pipeline surface area and desired lifespan​. As pipelines get deeper, water temperature drops and oxygen content may decrease, affecting current demand (lower in some cases). Also, deepwater pipelines might forego heavy concrete weight coatings (used in shallow water for stability), which means careful placement of anodes is required so they don’t protrude and get damaged during installation​.

Maintenance: Unlike onshore pipelines, you can’t easily perform frequent surveys on a fully submerged line. Instead, ROV (remotely operated vehicle) inspections are done occasionally to check anode condition and potential profiles. Sacrificial anodes often have built-in “tell-tale” indicators of how much has been consumed (e.g., percentage wastage by visual inspection). If anodes are heavily depleted before end of life, retrofit anode sleds or clamped anodes can be installed via divers or ROVs. Impressively, well-designed subsea CP systems have protected pipelines for decades with minimal intervention.

Offshore Platforms, Marine Terminals, and Risers

Offshore platforms and marine structures endure some of the most corrosive conditions on Earth: saltwater immersion, salt spray above water, high humidity, and the action of waves. Steel jackets (legs and frame of fixed platforms), subsea wellheads and manifolds, FPSO hulls, drilling rigs, marine loading jetties, and even offshore wind farm monopiles all face continuous corrosion pressure. Cathodic protection is essential to maintain the structural integrity of these assets that often are far offshore with limited access.

For fixed offshore platforms (steel jackets anchored to the seabed), the prevalent solution is Galvanic CP using many sacrificial anodes mounted on the structure. If you look at an offshore jacket structure, you will notice blocks of anodes (usually aluminum alloy) welded at intervals on beams, legs, and critical nodes​. These anodes are sized to provide enough current to protect the entire submerged surface area of the platform (including any attached risers, caissons, and piles) for the platform’s design life (often 20-30 years). The anodes are typically large castings (weighing 100+ kg each), and dozens or hundreds may be used on a single platform. They corrode gradually, protecting the steel in the process.

Larger or particularly critical structures might use Impressed Current CP systems. For example, FPSOs (Floating Production Storage and Offloading vessels) or ship-shaped platforms often employ ICCP similar to ships – with reference electrodes and powered anodes mounted on the hull, controlled by a system that adjusts current output. Impressed current is common on movable assets because replacing sacrificial anodes on a ship’s hull would require dry-docking, whereas ICCP can be adjusted continuously and anodes are designed to last many years. Marine terminals (like jetties or docks) that have power availability may also opt for ICCP, with anodes placed in the water around the facility and a control panel onshore.

Risers (the vertical or inclined pipelines that connect subsea pipelines to the platform or floaters) are another crucial element. They often run in the splash zone (highly corrosive area with wet/dry cycles). Risers on platforms are usually electrically continuous with the platform, so the platform’s CP system protects them as well. Additional anodes might be placed on riser clamps for extra protection, especially in the splash zone or at the seabed tie-in. Flexible risers on floating platforms might have dedicated anodes or be protected by the FPSO’s ICCP system.

Key point: Offshore structures usually have CP integrated from the start as part of the design. It’s not optional – without CP, even the best coatings will likely blister or fail in some areas, leading to rust and eventual structural weakening. By having a fully planned CP system, operators ensure the submerged steel remains effectively immune to seawater corrosion for the intended life.

Example: A large North Sea production platform might have both zinc anodes (for immediate protection during installation) and aluminum indium anodes for long-term CP, strategically placed on the jacket. Cathodic protection keeps the entire submerged weight-bearing structure intact, avoiding dangerous corrosion of critical joints. In some cases, hybrid CP is used: sacrificial anodes cover initial years or certain components, and an ICCP system takes over for continuous regulation​.

For marine terminals and harbor structures (like steel pilings in water), CP is similarly used to prevent localized corrosion at the waterline and in soil. Impressed current systems can encircle a pier with a protective current shield, while sacrificial anodes often are bolted to pilings.

By safeguarding offshore and coastal assets with CP, companies avoid structural failures that could lead to hydrocarbon releases or collapse. It’s a fundamental part of offshore asset integrity management, as saltwater corrosion would otherwise consume these installations in a fraction of their intended service life.

Onshore Storage Tanks and Terminal Facilities

Oil and gas operations involve vast tank farms and storage terminals where crude oil, refined products, and intermediates are stored in large steel tanks. A typical above-ground storage tank (AST) in a refinery or depot may be a steel cylinder sitting on a foundation (often a concrete ringwall with a sand or soil base). The tank bottom is in contact with the soil or sand, creating a corrosion risk from the underside. Similarly, buried tanks (USTs) like those at service stations or aviation fuel farms are surrounded by soil. Cathodic protection is widely used to protect the external bottoms of tanks and associated buried piping from corrosion.

For above-ground storage tanks (ASTs), industry standards (like API Recommended Practice 651) strongly recommend cathodic protection for tank bottoms, especially when the bottom is in contact with conductive soil or groundwater. There are two main CP approaches for tanks:

• Galvanic Anode CP for Tanks: Suitable for smaller tanks or where power isn’t readily available. Magnesium or zinc anodes can be buried in the sand/soil underneath or around the tank. For new tanks, anodes are sometimes placed in a sand layer below the bottom plates (with dielectric shielding between anode and plate to prevent shorting). Alternatively, anodes can be installed in remote trenches around the tank and connected electrically to the tank bottom. Galvanic systems are simpler and have no risk of causing coating disbondment on tank bottoms (important if the tank has internal coatings on the bottom plate).
• Impressed Current CP for Tanks: Common for large-diameter tanks or clusters of tanks. An ICCP system might use an array of deep anodes drilled near the tank or shallow anodes distributed around the perimeter, all connected to a rectifier. The current is then spread through the soil to the tank bottom. ICCP allows one power unit to protect a very large tank or multiple tanks by outputting higher current. It’s often more economical for a tank farm with many tanks: a few rectifiers can protect all tanks, rather than maintaining many individual sacrificial anodes.

According to industry practice, small underground tanks (like fueling station tanks) often rely on galvanic anodes, while large above-ground tanks in corrosive environments lean towards ICCP for long-term protection​. This is echoed in guidelines: “For underground storage tanks, galvanic anode systems are frequently used. In contrast, large above-ground tanks, especially those in coastal or highly corrosive environments, often rely on ICCP systems for long-term protection.”​

Special considerations for tanks: The floor of a tank is typically one large metal sheet (with welded seams) lying on a soil pad – CP current must reach all parts of that underside. If a tank bottom has coating on its underside, CP current requirement is reduced, but coatings are seldom perfect, so CP is still needed. One challenge is electrical continuity – tanks must be electrically connected to CP anodes. Usually the tank is directly on soil (providing contact), but if there’s an impermeable liner or pad, CP designers may install CP cables bonded to the tank floor or through-shell connections. Another consideration is that tanks are often out-of-service infrequently; hence CP systems are expected to be reliable for years with minimal intervention. Monitoring is done via permanent reference electrodes or periodic measurements at test wells around the tank.

By deploying CP on tanks, operators prevent hidden bottom corrosion that can cause leaks of oil or chemicals into the ground – a serious environmental and safety issue. CP, combined with regular inspections (per API 653 or similar standards), dramatically reduces the likelihood of tank bottom failures. It’s not uncommon for well-maintained tanks with CP to go 20+ years without needing bottom replacement, whereas unprotected tanks might corrode through much sooner.

Other Steel Infrastructure in Oil & Gas Facilities

Cathodic protection also finds use in various other structures: well casings (to protect oil/gas well steel casings from external corrosion, especially if they traverse aquifers), plant piping (certain facilities protect buried sections of pipe or even on-grade pipe racks with CP), ship hulls and floating vessels (as mentioned, ICCP on ships and floating rigs), and steel in concrete (e.g., reinforced concrete jetty piles or bridges in marine environments can use CP to protect rebar). In essence, wherever there is a risk of electrochemical corrosion and the structure is valuable enough to warrant protection, CP can be applied. The principles remain the same, though the execution varies.

Now that we’ve covered where CP is used, let’s move on to how these systems are designed, installed, and kept effective over time.

Design and Installation Considerations

Designing a cathodic protection system for an oil & gas asset is a technical endeavor that must balance electrical, chemical, and practical factors. A well-designed CP system will effectively stop corrosion without causing any adverse side effects on the structure or neighboring infrastructure. Key considerations include:

• Adequate Protective Current: The design must ensure sufficient CP current is available to polarize the entire metal surface to protective levels. This is determined by the surface area of steel, the coating quality, and the environment. Engineers calculate current density requirements (in mA per square meter) for the structure based on empirical data and standards. For example, a bare steel surface in seawater may need ~100 mA/m² for protection, whereas a well-coated pipeline in soil might need <1 mA/m² (since only coating defects draw current). The total current needed is summed and then anode output is designed to meet that for the life of the asset​. If using sacrificial anodes, the anode mass is calculated based on consumption rates (Amp-hours per kg of anode material) to ensure the anodes can continuously supply the current over X years. If using ICCP, the rectifier and anode system are sized to handle the max anticipated current with some safety margin.
• Driving Voltage and Anode Placement: For galvanic systems, the anode material must have a sufficiently negative potential relative to the steel​. Zinc, aluminum, and magnesium all qualify (magnesium being the most active, used in high-resistivity soils; zinc/aluminum used in lower resistivity or where magnesium’s high driving voltage isn’t needed). Anode placement is crucial for even distribution – e.g., bracelet anodes spaced along a pipeline, or anodes arrayed around a tank, or on different levels of a platform – to avoid under-protected “shadow” areas. For ICCP, placement of anode beds (surface bed, deep ground bed, sled, etc.) should be such that current spreads efficiently to the structure and not disproportionately into one spot. Often, modeling or calculations are used to predict potential distributions. Strategic anode location can reduce interference and optimize current output​.
• Electrical Continuity and Isolation: The structure being protected must be electrically continuous so that the CP current can flow over all parts. This means bonding together different sections or ensuring welds provide continuity. Conversely, we often need to electrically isolate the structure from other metallic systems not intended to be protected, to prevent CP current loss or interference. For pipelines, this is done with insulating flanges/joints at station boundaries or where connecting to other pipelines. For tanks, isolation from piping may be considered. Design must identify all metal parts in contact and either include them in the CP system or isolate them.
• Coating Compatibility: Since CP and coatings work hand-in-hand, the CP design assumes a certain coating quality. If a superior coating is applied (with few holidays), the CP current required will be much lower. One design aim is actually to minimize the CP current by using good coatings, as coatings isolate the metal from environment except at defects​. However, CP designers also consider worst-case scenarios (coating damage, degradation over time) and may design for higher current to account for aging. Importantly, the coating must be cathodic protection compatible – some coatings can disbond under cathodic polarization (a phenomenon called cathodic disbondment). Standards like ASTM G8/G42 test coatings for this. So, the chosen coating should tolerate the negative potentials of CP without peeling off. Fusion-bonded epoxy (FBE), for example, is designed to work with CP, whereas some cheap bituminous wraps might not.
• Cathodic Protection Criteria: Industry standards define what constitutes “adequate CP.” The most common criterion (from NACE SP0169 and others) is a polarized potential of –850 mV or more negative (Cu/CuSO₄ reference) on the structure surface​. Alternatively, achieving a 100 mV polarization shift from native potential is used as a criterion​. The CP system is designed to meet these criteria under all operating conditions. In high-risk scenarios (like stress corrosion cracking environments), more conservative potentials might be used. Designers will specify test stations and reference electrode locations to measure these criteria during operation.
• Stray Current and Interference: CP design must consider interactions with other structures. Impressed currents especially can cause “stray current” that leaves the intended structure and enters another (like a neighboring pipeline or a grounding system), potentially causing corrosion there. Designers mitigate this through proper anode placement (far from other structures), use of groundbeds located remote from pipelines, and sometimes by bonding systems together or using interference bonds (diodes, etc.) to return stray currents. AC interference from power lines is another aspect – although not directly a CP design issue, if a pipeline runs near AC transmission, the CP system may need to account for AC corrosion by higher CP currents or grounding systems (following standards like NACE SP0177 for AC mitigation).
• Safety and Codes: Installation in hazardous areas (like around oil tanks or gas pipelines) requires the CP system to be designed to electrical codes (proper insulation, explosion-proof enclosures for rectifiers in classified zones, etc.). Anode materials and cabling must also be chosen to withstand the environment (e.g., cables with robust insulation for burial or subsea use). Additionally, hydrogen evolution is a byproduct of over-protection; while generally not an issue if criteria are followed, if a high-strength steel or a weld is exposed under very negative potentials, hydrogen can embrittle it​. Thus, CP design for high-strength steels (like some offshore equipment) might deliberately limit potential to avoid hydrogen issues. Monitoring coupons or hydrogen probes might be included in designs for critical applications.

Once the design is finalized, the focus shifts to installation:

• Planning and Preparation: CP installation should be done by qualified personnel following a detailed plan. Materials (anodes, cables, rectifiers, test stations) should meet relevant standards (for example, ASTM standards for anode composition to ensure quality​). Before installation, electrical continuity tests on the structure are performed (e.g., pipeline sections welded and tested) to confirm the structure is ready to be polarized.
• Anode Installation: For buried anodes (groundbeds or galvanic anodes), proper placement and backfill are important. Impressed current anodes often use a special carbonaceous backfill (coke breeze) to lower resistance and prolong anode life. Sacrificial anodes sometimes use gypsum backfill for magnesium anodes. Anodes must be handled carefully to avoid coating damage (many anodes come pre-packaged with backfill). They should be free of defects and connected with secure cable attachments​. Welding anode mounts on pipelines or structures should be done following approved procedures so as not to compromise the structure (low-hydrogen welding, etc.).
• Cable Connections and Seals: Cables from anodes to the structure or rectifier are the lifelines of the CP system. Connections to the structure (like pipeline test lead wires) are usually thermit welded (cadwelded) onto the pipe or tank. Those connections are then sealed with protective coatings to prevent moisture ingress at the attachment point. It is critical to ensure electrical insulation integrity of all cabling – any nick in an insulation that contacts soil could cause a short or loss of current to the intended path​. All buried splices should be resin or heat-shrink sealed. In short, the entire circuit from anode to structure to rectifier (for ICCP) must be robustly built and coated against the environment.
• Compliance with Standards and QA/QC: CP system installation must follow applicable standards and approved design drawings​. Many operators have inspection checkpoints during installation: e.g., verify anode composition certificates, inspect welds and cable attachments, test insulation joints (to ensure isolation), measure baseline structure potentials before energizing CP, etc. A common step is to perform a commissioning survey once an ICCP system is energized or anodes installed – checking that initial potentials meet expectations and that no wiring mistakes were made (like reversed polarity on an impressed current anode, which would accelerate corrosion accidentally). All these steps are vital to deliver an effective CP system that performs as intended from day one.

In summary, careful design and quality installation set the stage for a successful cathodic protection system. When done properly, the CP system will largely run in the background, silently preventing corrosion. But to ensure it keeps doing so, ongoing monitoring and maintenance are required, as we discuss next.

Monitoring and Maintenance of CP Systems

Implementing cathodic protection is not a “set it and forget it” affair – regular monitoring and maintenance are essential to ensure long-term effectiveness. Oil and gas operators, especially those with high-value assets, treat CP monitoring as a critical part of their asset integrity program. Here are the key strategies:

• Routine CP Potential Surveys: The fundamental check is measuring the electrochemical potential of the protected structure with respect to a reference electrode (like a copper sulfate electrode for land, silver chloride for marine). These measurements confirm if the structure is at or more negative than the protection criterion (e.g., –850 mV Cu/CuSO₄ for steel in soil). For pipelines, this is done at test stations along the route at least annually (many operators do it more frequently)​. For tanks, measurements are taken at dedicated monitoring points or by temporarily installing a reference cell under the tank near the edge. Offshore, divers or ROVs take potential readings on subsea structures using portable reference electrodes. Close Interval Surveys (CIS) are a specialized technique for pipelines where a continuous profile of pipe-to-soil potential is recorded along the route to identify any under-protected spots. These surveys help catch issues like coating damage or interference that cause potential drops.
• Anode Inspection and Replacement: In galvanic systems, one must periodically inspect the sacrificial anodes to estimate remaining life. On a buried pipeline, this might only happen during dig-ups or inline inspection tool data (some smart pigs can detect anode material). On offshore platforms and ships, diver or ROV inspections can visually check anode depletion (e.g., anodes that are 80% consumed might need planning for replacement). If anodes are found heavily wasted, proactive replacement or retrofit anodes can be installed to avoid a protection gap. An example is offshore: if a platform’s original anodes are nearing depletion after 15 years, engineers may deploy retrofit clamp-on anodes or hang impressed current anode strings to beef up protection for the next phase of life.
• Rectifier and Power System Checks: For ICCP systems, continuous operation of the power source is critical. Regular (often monthly or quarterly) inspections of CP rectifiers are standard. Technicians check that the output current and voltage are at the intended settings, measure the structure potential at nearby test points to ensure the rectifier is doing its job, and log any deviations. They also inspect for any damage, burnt components, tripped breakers, etc. Modern rectifiers often have remote monitoring – they report their output and can alarm if there’s an outage. Some even allow remote adjustments. Solar-powered CP units (used in remote pipelines) require maintenance of solar panels and batteries. Ensuring these are functional (panels clean, batteries holding charge) is part of CP upkeep.
• Remote Monitoring Technology: Many operators have invested in remote CP monitoring systems that automatically measure and transmit CP data. These systems can include remote monitoring units (RMUs) at test stations that periodically send pipe-to-soil potentials via satellite or cellular network, and remote controlled rectifiers that allow engineers to tweak settings from afar​. Remote monitoring greatly enhances oversight, especially for pipelines that traverse hard-to-access regions or offshore structures where manual measurements are costly. They can alert the corrosion engineers immediately if a rectifier fails or if protection levels drift below criteria. As a result, issues can be fixed proactively rather than discovered by a leak or during an annual check.
• Interference Monitoring: If the asset is in a shared corridor or near other CP systems, part of maintenance is checking for interference effects. This could involve synchronized switching surveys (turning CP on/off to see influence), checking bonds that were installed to mitigate interference, and coordinating with other asset owners (for example, if a foreign pipeline runs close by, companies often exchange CP data to ensure neither is interfering with the other).
• Record Keeping and Analysis: All CP measurements and maintenance activities are documented. Trending the data over time is extremely valuable. A gradual rise in potentials might indicate coating deterioration (more current being picked up to maintain protection) – which could trigger a focused inspection of the coating. A sudden drop in potential in one section might indicate a bond or cable break, or new interference from a stray current source. By analyzing trends, corrosion engineers can predict when anodes will deplete or when a CP system needs augmentation. These records also demonstrate compliance with regulations that require proof of adequate corrosion control.
• Maintenance actions: If issues are found, maintenance is performed. This can include:
  • Adjusting rectifier outputs to compensate for changes (common in ICCP – e.g., seasonal soil resistivity changes or a new coating damage).
  • Replacing broken wires or failed components (a frequent task is repairing test station leads that might get accidentally cut during excavation or damaged).
  • Installing additional anodes if coverage is insufficient (for pipelines, sometimes extra anodes are added at a trouble spot; for tanks, adding anodes in new drilled holes if area not reaching criterion).
  • Cleaning reference electrodes or replacing them if they drift (permanent reference cells can degrade).
  • In rare cases, dealing with over-protection: if potentials are too negative (more negative than, say, –1200 mV Cu/CuSO₄ on steel) it can cause coating disbondment or hydrogen issues, so then output is reduced.

A well-run CP maintenance program ensures that any deviation from protective conditions is caught early and corrected. This preemptive approach is far cheaper and safer than reacting to corrosion leaks or damage after the fact. It’s worth noting that cathodic protection monitoring is often integrated into overall asset integrity software systems – where CP readings, inspection results, and risk assessments are correlated. For example, if a pipeline smart pig finds metal loss, one might check CP history at that location to see if CP was below par, indicating an area to improve.

As an example of industry practice: EnLink Midstream noted that “Our processes include pipeline smart tool runs, pressure testing, cathodic protection, and robust corrosion management… performing tests that meet or exceed regulatory requirements, reducing risk and increasing reliability.”​ This highlights that CP monitoring is on par with other critical integrity tests in importance.

Through diligent monitoring and maintenance, cathodic protection systems can continuously safeguard infrastructure for decades. But CP doesn’t stand alone – it’s most powerful when used as part of a comprehensive Asset Integrity Management Program, as we discuss next.

Integration with Asset Integrity Management

For high-profile oil and gas operators, asset integrity management (AIM) is a strategic, company-wide program that ensures all assets operate safely and reliably throughout their life cycle. Cathodic protection is a key element of corrosion control, which itself is a pillar of asset integrity. Integrating CP into the broader integrity management program means treating CP not as a standalone task, but as part of the holistic strategy to manage risk and optimize asset performance.

Here’s how cathodic protection fits into asset integrity management:

• Corrosion Management Framework: Companies often have a corrosion management framework (sometimes following ISO 55000 for asset management or NACE’s IMPACT guidelines​) which identifies all corrosion threats (internal, external, stress corrosion, etc.) and mitigation measures. CP addresses external corrosion threats for buried or submerged equipment. As such, CP is logged as a barrier or control for certain risks in the risk register. For example, the threat “external corrosion on pipeline X” is mitigated by “high-performance coating + CP maintained to criteria.” This integration ensures that the absence or failure of CP raises a flag in the risk assessment. It also means resources (budget, personnel) are allocated to CP as part of integrity management.
• Procedures and Compliance: An AIM program will include procedures for CP monitoring, remediation, and design as part of its standard operating practices. This aligns with regulatory compliance too – e.g., U.S. pipeline rules (49 CFR 192 for gas, 195 for liquid) explicitly require CP and annual surveys​. Integrity management ensures these surveys happen and any deficiencies are corrected promptly to meet the law. Additionally, standards like NACE SP0169 are referenced in company specs to guide CP operations​. Integrating CP means that when an asset is designed or modified, the integrity team automatically reviews CP needs (e.g., adding a new pipeline section triggers a CP design check per the program).
• Cross-Functional Teams: Asset integrity involves various disciplines – corrosion engineers, inspection engineers, operations, maintenance, and sometimes third-party specialists. CP data informs other disciplines. For instance, if CP readings show a section of pipeline was underprotected for some time, the inspection team might prioritize that segment for an in-line inspection or direct assessment (dig inspection) to ensure no significant corrosion occurred. Conversely, if an inspection finds external corrosion, the corrosion team investigates CP performance in that area. By integrating CP, there is a feedback loop between CP performance and inspection results, improving the overall understanding of asset health.
• Data Management and Predictive Analytics: Integrated integrity programs often use software to manage inspection and CP data together. This can enable predictive maintenance – for example, trending CP readings and corrosion rates to forecast when an asset might reach a condition that needs repair. If a particular tank’s CP system is showing increasing currents (indicating coating degradation), the program might schedule an earlier internal inspection of the tank floor or plan a re-coating project, thus preventing a leak. The integration essentially allows CP to be used as a leading indicator for corrosion issues.
• Training and Culture: High-profile operators invest in training their staff in CP as part of integrity management. NACE (now AMPP) certification programs for CP (CP1, CP2, etc.) are often required for personnel managing these systems​. By embedding CP awareness in the company’s safety and integrity culture, even non-corrosion staff appreciate its importance – for example, dig crews are trained to not damage CP wires and to report any they find, operations staff know to quickly report any power failure in a CP rectifier as an urgent issue, etc. This cultural integration is vital; it turns CP from an obscure engineering task into a recognized safety measure (just like leak detection or pressure safety valves).
• Continuous Improvement: An integrated approach means companies review CP system performance as part of periodic integrity reviews. They might ask: are there better technologies (like new remote monitoring tools, or improved anode materials) to implement? Are CP criteria being met, and if not, why? These questions lead to improvements such as installing more RMUs, upgrading old rectifiers, or adjusting criteria if needed (some cases use more stringent -900 mV for certain bacteria-related corrosion, for example). The goal is to continuously enhance corrosion control, thereby reducing overall risk and extending asset life in a cost-effective way.

To illustrate, consider a pipeline integrity management program: It will include cathodic protection surveys, in-line inspections (smart pigging), direct assessment, coating maintenance, pressure tests, etc., all coordinated on a schedule. If the pigging finds minimal external corrosion, it validates the CP system’s effectiveness, which in turn gives confidence to regulators and the company to perhaps optimize inspection intervals. If the pig finds anomalies, CP data helps determine if they were due to any lapse in protection. Thus, CP is not isolated – it’s both informing and informed by other integrity activities.

Major oil & gas companies view robust CP systems as strategic assets in themselves. The prevention of failures saves millions in avoided releases and repairs, not to mention protecting company reputation. Integration of CP into asset integrity means executives and managers get reports on CP status as part of overall asset risk KPIs (Key Performance Indicators). For example, a report might show “99.5% of pipeline miles are within CP criteria – goal met” which is a strong indicator of corrosion risk being under control.

In summary, integrating cathodic protection with asset integrity management ensures that CP is adequately funded, staffed, monitored, and continuously improved within the broader mission of safety and reliability. As a result, companies like BP, Shell, SOCAR and others can trust that their vast infrastructure remains protected against corrosion as part of a managed, auditable process rather than ad-hoc efforts.

Industry Standards and Best Practices

Cathodic protection in the oil and gas industry is guided by a robust framework of standards and recommended practices developed by organizations like NACE International (now part of AMPP – Association for Materials Protection and Performance), ISO, ANSI/AWWA, DNV, and API. Adhering to these standards ensures that CP systems are designed, installed, and maintained according to proven criteria and methods, which is crucial when dealing with high-stakes assets.

Some key standards and references include:

• NACE SP0169 (AMPP SP0169) – “Control of External Corrosion on Underground or Submerged Metallic Piping Systems.” This is a foundational standard for pipeline cathodic protection, covering design guidelines, CP criteria (e.g., the –850 mV criterion)​, and monitoring practices. Pipeline operators worldwide use SP0169 as a basis for their CP programs​. The latest version (2024) updates criteria and addresses new issues like interference and AC corrosion. NACE/AMPP also have standards for other assets, e.g., NACE SP0285 for underground storage tanks and NACE RP0193 for on-grade tank bottoms​, and NACE RP0176 for offshore platforms.
• ISO 15589 Parts 1 and 2 – These international standards (ISO 15589-1 for onshore pipelines and ISO 15589-2 for offshore pipelines) provide guidelines similar to NACE but often aligned with ISO methodologies. They cover design, installation, testing, and commissioning of CP systems for pipelines in oil & gas. Many projects, especially in Europe and Middle East, use ISO 15589 in specifications.
• DNV-RP-B401 – “Cathodic Protection Design.” Issued by DNV (Det Norske Veritas), this recommended practice is widely used for designing CP for offshore structures and pipelines. It provides detailed calculations for anode requirements in seawater, current density guidelines for various conditions, and safety factors​. Offshore engineering firms often follow DNV-RP-B401 to ensure platforms and subsea equipment have adequate CP for the specified life.
• API RP 651 – “Cathodic Protection of Aboveground Petroleum Storage Tanks.” Published by the American Petroleum Institute, this RP focuses on storage tanks’ soil-side corrosion control. It describes methods to determine if CP is needed, how to implement galvanic or ICCP systems for tanks, and how to inspect/maintain them. It complements API 653 (tank inspection code) by addressing corrosion prevention between inspections.
• European Standards (EN) – There is a set of EN standards related to CP, often adopted in many countries. For example, EN 12954 (general principles for CP of buried pipelines) aligns with NACE criteria, EN 12474 (CP for submarine pipelines), EN 12495 (CP for fixed offshore structures), EN 13636 (CP of buried tanks), and EN 13509 (CP measurement techniques)​These provide detailed guidance and are harmonized with ISO in many cases.
• NACE/AMPP Standards for Monitoring and Testing: NACE has test method standards like NACE TM0497 for techniques related to CP criteria measurement​, and others for devices like reference electrodes. There are also standards for AC corrosion mitigation (NACE SP21424 formerly SP0177) which, while not CP per se, interact with CP practices for pipelines near AC power lines.
• Regulatory Codes: In the U.S., regulations such as 49 CFR 192 and 195 incorporate CP requirements​.

They essentially mandate following standards like NACE SP0169 to ensure compliance. Other countries have similar regulations (for instance, the U.K. Pipeline Safety Regulations require maintaining pipelines in safe condition, which CP helps achieve). Companies must be aware of these when operating in those jurisdictions.

• Certification and Training: While not a “standard,” it’s worth noting that AMPP (formerly NACE) offers CP certification programs (CP1 through CP4 for various levels of cathodic protection expertise). Many oil & gas companies require that CP design or survey work be done or supervised by personnel with these certifications. This ensures best practices are followed by knowledgeable professionals.

Best practices gleaned from these standards and industry experience include: designing CP concurrently with the overall project design (not as an afterthought), performing interference studies whenever multiple structures are involved, using quality materials (certified anodes, high-grade cables, etc.), and implementing thorough commissioning tests (including depolarization tests to confirm polarization criteria like 100 mV decay).

Another best practice is regular external audits or reviews of CP systems by third-party experts, benchmarking performance against industry peers. This can identify areas for improvement. Given the evolving nature of materials and technology, best practices today also encourage leveraging new tools – for instance, using remote monitoring extensively, or applying computational modeling (e.g., finite element modeling of CP current distribution) for complex structures to optimize anode placement.

To emphasize the importance: following these standards is not just bureaucratic compliance; it is proven to significantly reduce corrosion failures. NACE’s studies have shown that a large percentage of external corrosion leaks on pipelines occur when CP is absent or below criteria – underscoring that adherence to CP criteria (like those in SP0169) effectively prevents corrosion leaks in most cases​. Similarly, offshore structures designed to DNV CP standards have safely exceeded their design lives with minimal corrosion.

In summary, oil and gas companies should embrace industry standards for cathodic protection as the distilled wisdom of decades of field experience. High-profile clients – whether a supermajor like BP or a national oil company like SOCAR – often even participate in refining these standards through industry bodies, because they recognize that corrosion control is a domain where sharing knowledge and best practices benefits everyone’s safety and asset longevity.

Conclusion

Cathodic protection is a cornerstone of corrosion prevention in the oil and gas industry, protecting billions of dollars worth of infrastructure around the globe. By turning pipelines, tanks, and offshore structures into cathodes, CP systems halt the electrochemical processes that would otherwise lead to rust and failure​. We’ve explored how CP works on a fundamental level and how it’s implemented through galvanic anode and impressed current systems – each with unique advantages suited to different scenarios. From buried pipelines crossing continents to platforms standing in harsh seas, cathodic protection shields critical assets, working in tandem with coatings and other measures to ensure reliability.

For high-profile operators, the importance of CP cannot be overstated: it prevents accidents, protects the environment from spills, saves maintenance costs by preserving asset life, and helps achieve regulatory compliance​.

The strategic value is clear when CP is integrated into asset integrity programs – it provides data and defense that keep the energy infrastructure safe and efficient. Real-world success stories abound of pipelines operating for decades without significant external corrosion, or tanks lasting well beyond original expectations, thanks in large part to effective cathodic protection.

As oil and gas infrastructure ages and new challenges (like deeper waters or more corrosive environments) arise, CP technology is also evolving – with better materials (e.g., MMO anodes), smarter remote monitoring, and improved modeling. The commitment to standards (NACE/AMPP, ISO, API, DNV, etc.) ensures that lessons learned globally inform each project’s CP design and maintenance, leading to continuous improvement in corrosion management outcomes.

In conclusion, cathodic protection stands as a proven, indispensable technique for corrosion control. For any oil and gas operator – be it an international major or a national company – investing in robust CP systems and practices is investing in the safety, sustainability, and profitability of their operations. Corrosion may be relentless, but with cathodic protection in our arsenal, we have the power to relegate it from a catastrophic threat to a manageable condition, securing the flow of energy that drives our world.

What Are Telluric Currents?

Telluric currents, sometimes referred to as Earth currents, are induced by natural processes such as:

• Solar activity (flares and sunspots)

• Geomagnetic storms

• Variations in the Earth’s magnetic field

These currents flow unpredictably through the ground, following paths of least electrical resistance, and can be found around the world.

Why Telluric Currents Matter

A pipeline’s cathodic protection system is designed to provide a controlled electrical current to protect the pipeline’s metal surface from corrosion. Telluric currents can interfere with this controlled current, leading to:

1. Voltage Fluctuations: Sudden changes in the Earth’s natural electric fields can alter the voltage in the pipeline, making it difficult to maintain a stable protective potential.

2. Overprotection or Underprotection: The cathodic protection system may supply too much or too little current in response to fluctuating telluric activity, potentially increasing the risk of corrosion.

3. Monitoring Challenges: Telluric currents add noise to measurement readings, complicating data analysis and requiring more sophisticated equipment and expertise to distinguish between pipeline issues and natural fluctuations.

Mitigating the Impact of Telluric Currents

Engineers and technicians take several measures to address telluric current interference:

1. Advanced Monitoring: Using high-resolution data loggers and remote monitoring systems to detect and analyze voltage changes caused by telluric events.

2. Real-Time Adjustments: Integrating automated CP controllers that can respond quickly to voltage fluctuations, helping maintain the correct levels of protective current.

3. Periodic Surveys: Performing frequent potential surveys, particularly during known periods of heightened solar or geomagnetic activity, to ensure the pipeline remains adequately protected.

4. Protective Bonding and Grounding: Implementing bonding and grounding solutions can help direct or diffuse unwanted currents, thereby limiting their impact on CP systems.

Conclusion

Telluric currents are a natural phenomenon that can present real challenges for pipeline owners and operators. By understanding how these currents affect cathodic protection systems—and by using cutting-edge monitoring and control strategies—engineers can mitigate risks and ensure that pipelines remain well protected against corrosion. Implementing these strategies not only helps maintain the longevity of the pipeline infrastructure but also safeguards the safety and reliability of the energy supplies on which we all depend.

Internal cathodic protection systems are an essential component of tank storage systems in the oil and gas industry. These systems provide protection against corrosion, which is a major threat to tank integrity and can lead to leaks, environmental contamination and costly repairs. Internal cathodic protection systems work by applying an electrical current to the metal surface of the tank, eliminating the corrosion and extending the tank’s service life.

There are two main types of internal cathodic protection systems: impressed current systems and sacrificial anode systems. Impressed current systems use an external power source to apply a current to the tank’s metal surface, while sacrificial anode systems use a more reactive metal (such as Magnesium, Aluminium and Zinc) to corrode instead of the tank’s metal surface. Impressed current systems are often preferred for larger tanks or those storing highly corrosive products, as they provide consistent protection over a longer period than sacrificial anode systems.

Proper installation and maintenance of internal cathodic protection systems are crucial to their effectiveness. The system must be designed to provide adequate coverage of the tank’s internal surface and installed correctly to ensure the current is applied evenly. Regular maintenance is also necessary to ensure the system is functioning correctly and to replace any components that have worn out. By implementing an effective internal cathodic protection system, our clients can ensure asset longevity, prevent corrosion-related damage and costs and maintain a safe and secure working environment.

Evaluating the Cost-Effectiveness of Tank Internal Cathodic Protection Systems

Cathodic protection systems are an essential aspect of tank storage systems, providing protection against corrosion and ensuring asset longevity. However, choosing the right type of cathodic protection system can be challenging, especially when considering the cost-effectiveness of different options. In this article, we will describe the factors that affect the cost-effectiveness of tank internal cathodic protection systems and how to evaluate them.

The first factor to consider when evaluating the cost-effectiveness of a cathodic protection system is the initial installation cost. The cost of the system must be balanced against the potential cost of corrosion damage and the cost of replacing the tank. It is essential to evaluate the long-term benefits of the system versus the initial cost to determine its cost-effectiveness.

The second factor to consider is the maintenance cost of the system. All cathodic protection systems require maintenance to ensure their effectiveness over time. The frequency and cost of maintenance will depend on the type of system and the tank’s environment. It is essential to factor in the ongoing maintenance cost when evaluating the cost-effectiveness of a system.

The lifespan of the cathodic protection system is also a critical factor to consider. Some systems, such as sacrificial anode systems, have a limited lifespan and will require replacement over time. In contrast, impressed current cathodic protection systems can provide protection for the life of the tank when properly maintained. The lifespan of the system will affect the long-term cost-effectiveness of the system.

In conclusion, evaluating the cost-effectiveness of tank internal cathodic protection systems requires a comprehensive approach that considers several factors. The initial installation cost, ongoing maintenance cost, effectiveness in preventing corrosion, lifespan of the system and regulatory requirements all play a role in determining the cost-effectiveness of a system.

ICCP

Design Considerations for Tank Internal Impressed Current Cathodic Protection Systems: A Comprehensive Guide

Impressed current cathodic protection (ICCP) systems are commonly used for tank internal protection against corrosion in the oil and gas industry. The design of ICCP systems requires careful consideration to ensure effective and long-lasting protection of the tank’s interior. In this article, we will describe the key design considerations for ICCP systems in tank storage systems.

The first design consideration is the selection of appropriate materials for the ICCP system. Materials used in the system must be corrosion-resistant, durable and able to withstand the tank’s environment. The ICCP system must also be designed to provide consistent and uniform current distribution throughout the tank’s interior. The system should be designed to prevent the accumulation of current at localised areas, which can result in damage to the tank’s metal.

The second design consideration is the configuration of the ICCP system. The system must be designed to provide coverage of the entire tank’s interior. The configuration of the ICCP system will depend on the shape and size of the tank. Rectangular tanks may require multiple anodes to provide even current distribution, while cylindrical tanks may require concentric anode systems. The system’s configuration must be designed to provide adequate coverage and prevent any areas of the tank’s interior from being unprotected.

The third design consideration is the power source for the ICCP system. The power source must be capable of providing the required voltage and current to the ICCP system. The power source must also be designed to withstand the tank’s environment and be protected from damage caused by corrosion or other environmental factors. The power source must be reliable and designed to operate continuously, as any interruption in the system’s power can lead to corrosion and damage to the tank’s interior.

In conclusion, designing an effective ICCP system for tank internal protection requires careful consideration of materials, configuration and power source. The system must be designed to provide consistent and uniform current distribution throughout the tank’s interior, prevent localised areas of current accumulation and provide coverage for the entire tank’s interior. Proper design and implementation of ICCP systems can help prevent corrosion-related damage and costs, ensuring asset longevity and safety in the tank storage system.

Galvanic

Design Considerations for Tank Internal Galvanic Cathodic Protection Systems

Galvanic cathodic protection (GCP) systems are an effective way to protect the interior of tanks from corrosion in the oil and gas industry. This article will describe the key design considerations for GCP systems in tank storage systems.

The first design consideration is the selection of appropriate materials for the GCP system. Materials used in the system must be corrosion-resistant, durable and able to withstand the tank’s environment which are Aluminium, Zinc and Magnesium anodes. The GCP system must also be designed to provide consistent and uniform current distribution throughout the tank’s interior. The system should be designed to prevent the accumulation of current at localised areas, which can result in damage to the tank’s metal.

The second design consideration is the configuration of the GCP system. The system must be designed to provide coverage of the entire tank’s interior. The configuration of the GCP system will depend on the shape and size of the tank. The system’s configuration must be designed to provide adequate coverage and prevent any areas of the tank’s interior from being unprotected.

The third design consideration is the selection and placement of anodes in the GCP system. The anodes must be selected based on their electrochemical properties and their placement must be designed to provide uniform current distribution throughout the tank’s interior. The anodes must be placed in a way that ensures even current distribution and prevent areas of localised current accumulation.

In conclusion, designing an effective GCP system for tank internal protection requires careful consideration of materials, configuration and anode placement. The system must be designed to provide consistent and uniform current distribution throughout the tank’s interior, prevent localised areas of current accumulation and provide coverage for the entire tank’s interior. Proper design and implementation of GCP systems can help prevent corrosion-related damage and costs, ensuring asset longevity and safety in the tank storage system.

External

Above ground tank bottom plate external cathodic protection systems are essential for preventing corrosion on the bottom plates of tanks in various industries, including oil and gas. The bottom plates are particularly susceptible to corrosion as they come into direct contact with the ground and are exposed to moisture, chemicals and other corrosive elements. These external cathodic protection systems help extend the service life of the tanks and prevent leaks, environmental contamination and costly repairs.

For the above ground tank bottom plate external cathodic protection systems, impressed current systems are the most common. Impressed current systems use an external power source to apply a direct current to the tank’s bottom plates.

Proper installation and regular maintenance are crucial for the effectiveness of these systems. The system should be designed to ensure adequate coverage of the tank’s bottom plates and the components must be installed correctly to ensure even current distribution. Routine inspections and maintenance activities and monitoring the system’s performance are essential to maintain the system’s effectiveness and protect the tank from corrosion-related damage. By implementing an appropriate above ground tank bottom plate external cathodic protection system, our clients can safeguard their assets, prolong the tank’s life and mitigate the risks associated with corrosion.

Evaluating the Cost-Effectiveness of Tank External Cathodic Protection Systems

Evaluating the cost-effectiveness of tank external cathodic protection systems is crucial for tank owners and operators to make informed decisions regarding their corrosion protection strategies. A cost-effective system balances the initial investment, ongoing maintenance costs and the potential savings from preventing corrosion-related damage and repairs.

To evaluate cost-effectiveness, several factors should be considered. Firstly, the initial installation cost, including equipment, materials and labour, needs to be assessed. This cost will vary depending on the size of the tank and the complexity of the installation process. It is important to compare these costs with the potential savings that can be achieved by preventing corrosion-related damage, such as leaks, environmental contamination and structural repairs.

Secondly, ongoing maintenance costs should be taken into account. Regular inspections, monitoring and maintenance activities are necessary to ensure the system is functioning optimally. The cost of maintaining the impressed current system, including electricity consumption and electrode maintenance, should be factored into the evaluation. These costs need to be weighed against the potential savings from avoiding costly repairs and minimising downtime.

Lastly, the long-term benefits of a cost-effective system should be considered. By investing in an effective tank external cathodic protection system, our clients can extend the service life of their assets, minimise the risk of leaks and environmental incidents and maintain a safe working environment.

Overall, evaluating the cost-effectiveness of tank external cathodic protection systems requires a comprehensive analysis of initial installation costs, ongoing maintenance expenses and the potential savings and benefits associated with corrosion prevention. It is essential to consider the specific requirements of the tank, the expected corrosive environment and the long-term implications of investing in an effective system. By conducting a thorough evaluation, our clients can make informed decisions to protect their assets, reduce costs and ensure the longevity and reliability of their tank storage systems.

ICCP

Design Considerations for Tank External Impressed Current Cathodic Protection Systems: A Comprehensive Guide

Designing a tank external impressed current cathodic protection system requires careful consideration to ensure its effectiveness and long-term performance. Here is our comprehensive guide outlining the key design considerations that we take while designing such systems:

System Requirements: The first step in designing an impressed current cathodic protection system is to assess the specific requirements of the tank and its corrosive environment. Factors such as the tank size, material, coating condition, soil resistivity and potential current requirements need to be evaluated. Conducting a thorough site survey will help determine the appropriate system design parameters.

Current Distribution: Achieving uniform current distribution across the tank’s bottom external surface is critical for effective corrosion protection. The design should include an adequate number of anode rows strategically placed to ensure even coverage and current distribution. Factors such as anode spacing, anode configuration and current output should be optimised to avoid excessive current densities and areas of low current flow.

Electrical Power Supply: Impressed current cathodic protection systems require a reliable and stable electrical power supply. The design should consider factors such as power source options, power availability and backup systems in case of power outages. Proper grounding and electrical bonding should also be incorporated to ensure electrical safety and efficient current flow.

Monitoring and Control: Including a comprehensive monitoring and control system is crucial for assessing the performance of the cathodic protection system. Design considerations should include the installation of reference electrodes to measure the potential of the tank’s external surface, as well as remote monitoring capabilities to track current output, anode performance and system status. These monitoring systems enable early detection of any issues and allow for timely maintenance and adjustments.

System Maintenance: Designing for ease of maintenance is essential to ensure the long-term effectiveness of the system. Considerations should include provisions for periodic inspections and the incorporation of test points for potential measurements. The design should also account for regular system maintenance activities, such as cleaning and rectifier inspections, to maintain optimal performance.

Standards and Regulations: Compliance with relevant industry standards and regulations is critical when designing impressed current cathodic protection systems. Design considerations should incorporate requirements outlined in standards such as NACE (or others API, EN ISO…) which provides guidelines for the design, installation, operation and maintenance of impressed current cathodic protection systems.

By carefully considering these design aspects, our clients and cathodic protection professionals can develop effective impressed current cathodic protection systems that provide long-term corrosion protection, minimise risks and ensure the integrity of tank storage systems in the oil and gas industry.

A pipeline cathodic protection system is designed to prevent corrosion and ensure the integrity of underground or submerged pipelines. Corrosion is a significant threat to pipeline infrastructure, as it can lead to leaks, structural damage and costly repairs. The cathodic protection system works by applying a direct current to the pipeline, which shifts the electrochemical reaction and prevents the pipeline from corroding.

There are two main types of pipeline cathodic protection systems: impressed current systems and galvanic (sacrificial anode) systems. Impressed current systems use an external power source to apply a controlled DC current to the pipeline, while galvanic systems utilise sacrificial anodes made of more reactive metals that corrode (sacrifices itself) instead of the pipeline. The choice of system depends on factors such as the size of the pipeline, soil resistivity, coating condition, AC/DC interference and expected corrosion environment.

The pipeline cathodic protection system consists of various components, including anodes, (transformer) rectifiers, reference electrodes and (if necessary) bonding connections. Anodes (or anode ground beds) are strategically placed along the pipeline’s length and the system is designed to ensure even current distribution and coverage. Regular monitoring and maintenance activities, such as potential measurements and anode replacement are essential to ensure the system’s effectiveness.

By implementing a pipeline cathodic protection system, pipeline owners can mitigate the risk of corrosion, extend the lifespan of their infrastructure and ensure the safe and reliable transportation of fluids or gases. These systems play a critical role in the oil and gas industry, as well as in other sectors that rely on pipeline networks for transportation.

Evaluating the Cost-Effectiveness of Pipeline CP System

Evaluating the cost-effectiveness of a pipeline cathodic protection (CP) system is crucial for pipeline owners and operators to make informed decisions regarding their corrosion control strategies. A cost-effective CP system balances the initial investment, ongoing maintenance costs and the potential savings from preventing corrosion-related damage and repairs.

To assess the cost-effectiveness of a pipeline CP system, several factors should be considered. Firstly, the initial installation cost of the system, including materials, labour and equipment, needs to be evaluated. This cost will vary depending on factors such as the length and diameter of the pipeline, the type of CP system chosen (impressed current or galvanic) and the complexity of the installation process. It is important to compare these costs with the potential savings that can be achieved by preventing corrosion-related issues, such as leaks, pipeline failures and environmental contamination.

Secondly, ongoing maintenance and operation costs should be taken into account. Regular inspections, monitoring and maintenance activities are necessary to ensure the CP system is functioning optimally. The cost of conducting these activities, including monitoring equipment and any required repairs or replacements, should be factored into the evaluation. These costs need to be weighed against the potential savings from avoiding costly repairs, pipeline replacements and the associated environmental and safety risks.

Lastly, the long-term benefits of a cost-effective CP system should be considered. By investing in an effective CP system, our clients can extend the service life of their infrastructure, minimise the risk of leaks and environmental incidents and maintain the reliability and safety of their operations.

Overall, evaluating the cost-effectiveness of a pipeline CP system requires a comprehensive analysis of initial installation costs, ongoing maintenance expenses, the potential savings and benefits associated with corrosion prevention. It is crucial to consider the specific characteristics of the pipeline, the corrosive environment and the long-term implications of investing in an effective CP system. By conducting a thorough evaluation, our clients can make informed decisions to protect their assets, reduce costs and ensure the integrity and longevity of their pipeline infrastructure.

Long Pipeline ICCP

Design Considerations for Pipeline Impressed Current Cathodic Protection Systems: A Comprehensive Guide

Designing an impressed current cathodic protection (ICCP) system for pipelines requires careful consideration to ensure its effectiveness in preventing corrosion. Here is a comprehensive guide that we follow outlining the key design considerations for pipeline ICCP systems:

Pipeline Characteristics: The first step in designing an ICCP system is to understand the characteristics of the pipeline. Consider factors such as pipeline material, diameter, coating type/condition, burial depth and expected operating conditions. These factors influence the selection of appropriate anodes, current requirements and system configuration.

Current Distribution: Achieving uniform current distribution along the pipeline is crucial for effective corrosion protection. Design the system to ensure even current flow by determining the number, size and placement of anodes. Consider factors such as pipeline length, coating quality, soil resistivity and current output to achieve uniform current distribution and avoid areas of high or low current density.

Power Supply and Rectifier Selection: ICCP systems require a reliable power supply to deliver the necessary current to the pipeline. Select an appropriate rectifier that can provide the required output voltage and current. Consider factors such as power availability, electrical safety, grounding and surge protection to ensure a stable and secure power supply.

Reference Electrodes and Monitoring: Incorporate reference electrodes along the pipeline to measure the pipeline-to-soil potential. These reference electrodes provide vital information about the system’s performance and help monitor the corrosion protection level. Design the monitoring system to include remote monitoring capabilities for real-time data acquisition and potential measurement.

System Maintenance: Designing for ease of maintenance is essential to ensure the long-term effectiveness of the ICCP system. Consider accessibility for anode replacement, test (posts) points for potential measurements and provisions for regular inspections and maintenance activities. Proper documentation and record-keeping should also be part of the design to track system performance and maintenance history.

Compliance with Standards: Ensure compliance with industry standards and regulations governing cathodic protection systems for pipelines. Standards such as NACE (or others; EN ISO…) provide guidelines for the design, installation, operation and maintenance of cathodic protection systems. Adhering to these standards, helps ensure the system’s effectiveness and regulatory compliance.

Environmental Considerations: Consider the environmental impact of the ICCP system design. Factors such as stray current interference, environmental protection, field boundaries, roads, high voltage transmission lines and wildlife considerations should be addressed. Implement measures to minimise environmental risks, prevent interference with other structures and protect sensitive ecosystems.

By carefully considering these design aspects, our clients and cathodic protection professionals can develop effective ICCP systems that provide long-term corrosion protection, minimise risks and ensure the integrity and longevity of the pipeline infrastructure. It is crucial to conduct thorough engineering analysis, site assessments and periodic system evaluations to optimise the performance of the ICCP system.

Long Pipeline Galvanic

Design Considerations for Pipeline Galvanic Cathodic Protection Systems: A Comprehensive Guide

Designing a galvanic cathodic protection (GCP) system for pipelines requires careful consideration to ensure effective corrosion protection. Here is a comprehensive guide that we follow outlining the key design considerations for pipeline galvanic CP systems:

Pipeline Characteristics: Start by understanding the characteristics of the pipeline, including material, diameter, coating type/condition, burial depth and expected operating conditions. These factors influence the selection of appropriate galvanic anodes, their placement and the system’s configuration.

Anode Selection and Placement: Choose the right type and quantity of galvanic anodes based on factors such as pipeline size, coating quality, soil resistivity and expected service life. Anodes should be evenly distributed along the pipeline’s length to ensure uniform current distribution. Consider factors such as anode material, size, shape and expected consumption rate to achieve optimal protection.

Anode Bed Design: Proper design of the anode bed is crucial for efficient galvanic CP systems. Ensure adequate electrical conductivity of the backfill material surrounding the anodes. Consider factors such as backfill resistivity, moisture content, compaction and anode-to-backfill contact to maximise current output and anode efficiency.

Electrical Continuity: Maintain proper electrical continuity throughout the pipeline system. Ensure good electrical connections between the anodes, pipeline and associated metallic components. Proper bonding and grounding techniques should be employed to ensure effective current flow and electrical safety (for both steady state and fault current).

Environmental Considerations: Consider environmental factors that may affect the performance of the galvanic CP system. Factors such as soil resistivity, temperature, moisture content and stray current interference should be evaluated during the design phase. Adjustments may be required to accommodate specific environmental conditions and optimise system performance.

Monitoring and Maintenance: Incorporate a monitoring system to assess the performance of the galvanic CP system. Monitoring techniques may include potential measurements, anode current output monitoring and periodic inspections. Regular maintenance activities, such as anode replacement and system checks, should be included in the design to ensure long-term effectiveness.

Compliance with Standards: Ensure compliance with industry standards and regulations governing cathodic protection systems for pipelines. Standards such as NACE (or others; EN ISO…) provide guidelines for the design, installation, operation and maintenance of CP systems. Adhering to these standards helps ensure the system’s effectiveness and regulatory compliance.

By carefully considering these design aspects, our clients and cathodic protection professionals can develop effective galvanic CP systems that provide long-term corrosion protection, minimise risks and ensure the integrity and longevity of the pipeline infrastructure. Conducting thorough engineering analysis, site assessments and periodic system evaluations is crucial to optimise the performance of the galvanic CP system.

An in-plant pipeline cathodic protection system is designed to protect pipelines within an industrial facility or plant from corrosion. Corrosion poses a significant risk to the integrity and lifespan of pipelines, which can result in leaks, environmental contamination and costly repairs. The in-plant cathodic protection system works by applying a direct electrical current to the pipeline, shifting the electrochemical reaction and preventing corrosion.

The design of an in-plant pipeline cathodic protection system involves several key considerations. These include assessing the specific characteristics of the pipeline, such as material, size, coating condition and operating conditions. Anode selection and placement are critical to ensuring even current distribution along the pipeline. The system may employ either impressed current or galvanic anodes, depending on factors like pipeline length, complexity of the system, corrosion environment and maintenance requirements.

Proper electrical continuity, including effective bonding (to make sure all underground pipelines are as part of the cathode side of the circuit) and grounding, is essential for the efficient flow of the electrical current through the pipeline. Monitoring and maintenance play a vital role in the system’s effectiveness. Regular inspections, potential measurements and anode replacements are necessary to ensure the system is functioning optimally. Compliance with industry standards and regulations, such as those provided by organisations like NACE International, is also crucial in the design and implementation of the in-plant pipeline cathodic protection system.

By implementing an effective in-plant pipeline cathodic protection system, our clients can mitigate the risk of corrosion, extend the lifespan of their pipelines and ensure safe and reliable operations within the industrial facility. These systems are an important investment in maintaining infrastructure integrity, reducing the likelihood of leaks and preventing costly repairs and downtime.

Evaluating the Cost-Effectiveness of Inplant Pipeline CP System

Evaluating the cost-effectiveness of an in-plant pipeline cathodic protection (CP) system, whether it is galvanic or impressed current, involves assessing the financial investment and potential savings associated with corrosion prevention. Both system types aim to protect pipelines from corrosion within an industrial facility, but their cost-effectiveness considerations may vary.

For galvanic CP systems, the evaluation should include the cost of installing the anodes, selecting the appropriate anode material and determining the required quantity for effective protection. Galvanic systems do not require an external power supply, reducing installation and maintenance costs. However, the anodes have a finite lifespan and need periodic replacement, which should be factored into the long-term cost analysis. Assessing the potential savings from preventing corrosion-related damage, such as leaks, repairs and production downtime, is crucial to determining the cost-effectiveness of the galvanic CP system.

Impressed current CP systems require an external power supply, resulting in higher initial installation costs. The evaluation should consider the cost of rectifiers, power supply infrastructure and ongoing electricity consumption. However, impressed current systems typically offer greater control over the CP level and longer-term protection compared to galvanic systems. The potential savings from preventing corrosion-related issues should be compared against the higher upfront and maintenance costs to determine the cost-effectiveness of the impressed current CP system.

In both cases, it is essential to assess the potential cost savings associated with preventing corrosion-related damages, including leaks, pipeline failures, production interruptions and associated environmental and safety risks.

Overall, evaluating the cost-effectiveness of an in-plant pipeline CP system, whether galvanic (sacrificial) or impressed current, requires a comprehensive analysis of the installation, operation and maintenance costs, as well as the potential savings from preventing corrosion-related damage. It is crucial to consider the specific characteristics of the pipelines, the corrosive environment within the facility and the long-term implications of investing in an effective CP system. This evaluation will help our clients make informed decisions to protect their assets, reduce costs and maintain the integrity of their pipeline infrastructure.

Inplant ICCP

Design Considerations for Inplant Pipeline Impressed Current Cathodic Protection Systems: A Comprehensive Guide

Designing an in-plant pipeline impressed current cathodic protection (ICCP) system requires careful consideration to ensure effective corrosion prevention within an industrial facility. Here is a summary of the key design considerations that we follow for in-plant pipeline ICCP systems:

Pipeline Characteristics: Understand the specific characteristics of the pipelines within the facility, including material, size, coating condition and operating conditions. These factors influence the selection of appropriate anodes, current requirements and system configuration.

Current Distribution: Ensure uniform current distribution along the pipeline to achieve effective corrosion protection. Design the system to evenly distribute current by determining the number, size and placement of anodes. Analyse the location of the insulation flanges/gaskets in detail for electrical bonding if necessary. Consider factors such as pipeline length, coating quality, soil resistivity and current output to achieve optimal current distribution.

Power Supply and Transformer Rectifier Selection: Select an appropriate transformer rectifier and power supply to provide the necessary current for the ICCP system. Consider factors such as power availability, electrical safety, grounding and surge protection to ensure a stable, reliable power supply and electrical safe system.

Reference Electrodes and Monitoring: Incorporate reference electrodes along the pipeline to measure the pipeline-to-soil potential. These electrodes provide crucial information about the system’s performance and help monitor the corrosion protection level. Design the monitoring system to include remote monitoring capabilities for real-time data acquisition and potential measurement.

Electrical Continuity: Ensure proper electrical continuity throughout the pipeline system. Establish good electrical connections between the anodes, pipeline and associated metallic components. Proper bonding and grounding techniques should be employed to ensure effective current flow and electrical safety.

Maintenance and Inspections: Design the ICCP system for ease of maintenance and inspection activities. Consider accessibility for anode replacement, test points for potential measurements and provisions for regular inspections and maintenance. Proper documentation and record-keeping should also be part of the design to track system performance and maintenance history.

Compliance with Standards: Ensure compliance with industry standards and regulations governing cathodic protection systems. Adhere to guidelines provided by organisations like NACE International to ensure the effectiveness and regulatory compliance of the ICCP system.

By carefully considering these design aspects, our clients and cathodic protection professionals can develop effective ICCP systems for in-plant pipelines. Thorough engineering analysis, site assessments and periodic system evaluations are essential to optimise the performance of the ICCP system and ensure long-term corrosion protection within the facility.

Inplant Galvanic

Design Considerations for Inplant Pipeline Galvanic Cathodic Protection Systems: A Comprehensive Guide

Designing an in-plant pipeline galvanic cathodic protection (CP) system requires careful consideration to ensure effective corrosion prevention within an industrial facility. Here is a summary of the key design considerations that we comply for in-plant pipeline galvanic CP systems:

Pipeline Characteristics: Understand the specific characteristics of the pipelines within the facility, such as material, size, coating condition and operating conditions. These factors influence the selection of appropriate galvanic anodes, their placement and the overall system configuration.

Anode Selection and Placement: Choose the right type and quantity of galvanic anodes based on factors like pipeline size, coating quality, soil resistivity and expected service life. Distribute the anodes evenly along the pipeline to achieve uniform current distribution and effective corrosion protection.

Anode Bed Design: Design an effective anode bed surrounding the anodes to ensure good electrical conductivity. Consider factors such as backfill resistivity, moisture content, compaction and anode-to-backfill contact to maximise current output and anode efficiency.

Electrical Continuity: Maintain proper electrical continuity throughout the pipeline system. Ensure good electrical connections between the anodes, pipeline and associated metallic components. Proper bonding and grounding techniques should be employed to ensure effective current flow and electrical safety.

Environmental Considerations: Consider environmental factors that may affect the performance of the galvanic CP system. Factors such as soil resistivity, temperature, moisture content and potential stray current interference should be evaluated during the design phase. Adjustments may be required to accommodate specific environmental conditions and optimise system performance.

Monitoring and Maintenance: Incorporate a monitoring system to assess the performance of the galvanic CP system. Regular inspections, potential measurements and anode replacements are necessary to ensure long-term effectiveness. Implement maintenance activities and record-keeping to track system performance and maintenance history.

Compliance with Standards: Ensure compliance with industry standards and regulations governing cathodic protection systems. Adhering to guidelines provided by organisations like NACE International helps ensure the effectiveness and regulatory compliance of the galvanic CP system.

By carefully considering these design aspects, industrial facility owners and cathodic protection professionals can develop effective galvanic CP systems for in-plant pipelines. Thorough engineering analysis, site assessments and periodic system evaluations are essential to optimise the performance of the galvanic CP system and ensure long-term corrosion protection within the facility.

Jetty and port piles cathodic protection system is a specialised corrosion prevention method designed to protect piles in jetties and ports from the corrosive effects of seawater. It involves the installation of anodes, typically sacrificial zinc or aluminium anodes, on the piles. These anodes sacrificially corrode over time, diverting the corrosion process away from the piles and effectively preserving their structural integrity.

On the other method which is ICCP (impressed current cathodic protection) by providing a direct electrical current to the piles, the cathodic protection system creates a protective environment that prevents corrosion. This ensures a longer lifespan for the piles, reducing the CP system renewal costs and enhancing the overall durability of the marine infrastructure. The jetty and port piles cathodic protection system acts as a shield, safeguarding the piles from the corrosive nature of seawater, thereby ensuring their long-term performance and reliability.

Evaluating the Cost-Effectiveness of Piles in Jetties and Ports CP System

Installation Costs: Assess the upfront costs associated with the installation of the cathodic protection system, including materials, labour and equipment. Compare these costs to the potential savings from avoiding future repairs and maintenance due to corrosion.

Maintenance and Operational Costs: Consider the ongoing maintenance and operational expenses of the cathodic protection system. This includes periodic inspections, anode replacement, monitoring equipment and any necessary repairs. Balance these costs against the expected reduction in maintenance costs resulting from the protection system’s effectiveness. The cost of electricity for the impressed current cathodic protection system against the sacrificial cathodic protection system should be analysed in detail.

Corrosion Mitigation: Estimate the potential savings resulting from the reduction or elimination of corrosion-related issues. This includes avoiding repairs, replacements and downtime caused by corroded piles. Consider the expected service life extension of the piles due to the cathodic protection system and weigh it against the initial investment and ongoing costs.

Risk Assessment: Evaluate the risks associated with not implementing a cathodic protection system. Consider the potential consequences of corrosion, such as structural failure, environmental damage and disruptions to port operations. Assess the cost of mitigating these risks without a protection system in place.

Comparative Analysis: Compare the cost-effectiveness of different cathodic protection system options, including both impressed current and galvanic (sacrificial anode) systems. Consider factors such as installation complexity, maintenance requirements and expected effectiveness in protecting the piles.

The below graph is to show both type of the cathodic protection systems comparison; based on their cost versus the structure size (simply, the total submerged steel surface area to be protected against corrosion). As it could be seen that the Impressed Current Cathodic Protection System is costly for small structures compared to the galvanic (sacrificial) CP system. Because, there are cables, transformer rectifier units, most commonly Mixed Metal Oxide Titanium Anodes, evenly distributed reference electrodes for automatic mode of TR Units, junction boxes, distribution boxes etc… need to be installed. However, it is better to select ICCP system if the structure has a few more phases to be built in the future but it should be made sure that the whole phases pass the cross section of the two graphs to the positive X direction.

On the other galvanic CP system, the cost and the surface area is directly proportional (of course there are some factors such as coating break down factors, splash zone current density, loss of anodes… affect the line to become not linear but lets think its linear for now).

ICCP

Design Considerations for Piles in Jetties and Ports Impressed Current Cathodic Protection Systems: A Comprehensive Guide

Jetties and ports are critical infrastructures that play a crucial role in facilitating maritime trade and transportation. However, the exposure of these structures to harsh marine environments can lead to corrosion and degradation of the piles that support them. To mitigate the detrimental effects of corrosion, impressed current cathodic protection (ICCP) systems are employed. This article serves as a comprehensive guide that we follow for our design considerations of piles in jetties and ports ICCP systems, with a specific focus on the use of MMO (Mixed Metal Oxide) titanium anodes and the choice between remote anode groundbeds and homogenous distributed anodes at each pile.

Titanium anodes have emerged as a popular choice for ICCP systems in marine environments due to their exceptional resistance to corrosion and high current output capabilities. When designing a cathodic protection system for piles in jetties and ports, the selection of anode materials is of paramount importance. Titanium anodes offer a long service life, compatibility with seawater and efficient current distribution, making them ideal for protecting piles from corrosion.

One crucial consideration when designing ICCP systems is the configuration of the anode system. Two common options are remote anode groundbeds and homogenous distributed anodes at each pile. Remote anode groundbeds involve the installation of a separate anode bed located away from the piles, connected to the structure through cables. On the other hand, homogenous distributed anodes involve placing individual anodes directly on each pile.

The choice between remote anode groundbeds and homogenous distributed anodes depends on several factors. Remote anode groundbeds are typically preferred for larger structures where it is more practical to have a centralised anode system. They are suitable for situations where there is limited space or access for installing individual anodes on each pile. Additionally, remote anode groundbeds offer ease of maintenance and monitoring, as the anodes are concentrated in a single location. But high risk of system failure due to the cable breaks.

Homogenous distributed anodes, on the other hand, are advantageous for smaller structures or situations where piles are closely spaced. Installing an individual anode on each pile ensures more precise and localised protection. It allows for greater control over current distribution and avoids potential interference between different piles. Moreover, the distributed anodes can be easier to inspect and maintain, as they are readily accessible.

When designing ICCP systems using titanium anodes, several other factors should be taken into account. These include the pile material, geometry and spacing, as well as the required current output to achieve the desired level of protection. Adequate electrical continuity between the anode system and the piles is crucial to ensure effective cathodic protection. Additionally, monitoring and control systems should be incorporated to assess the performance of the ICCP system and make adjustments as necessary.

In conclusion, the design of piles in jetties and ports ICCP systems involves careful consideration of various factors. The use of titanium anodes provides excellent corrosion resistance and current output, making them a preferred choice. The selection between remote anode groundbeds and homogenous distributed anodes depends on the specific project requirements and constraints. By considering these design considerations and incorporating appropriate monitoring and control systems, effective cathodic protection can be achieved, extending the service life of the piles and ensuring the longevity of jetties and ports.

Galvanic

Design Considerations for Piles in Jetties and Ports Galvanic Cathodic Protection Systems: A Comprehensive Guide

Piles in jetties and ports are exposed to harsh marine environments, making them susceptible to corrosion and degradation. To combat this issue, sacrificial anode (galvanic) cathodic protection (CP) systems are commonly utilised. This article provides a comprehensive guide to the design considerations that we comply for piles in jetties and ports when using sacrificial anode CP systems. Specifically, it focuses on the use of zinc and aluminum anodes, the choice between remote anode groundbeds and homogenous distributed anodes and the importance of selecting long slender stand-off anodes based on DNV guidelines for enhanced efficiency.

Zinc and aluminium anodes are widely used as sacrificial anodes in cathodic protection systems for piles in jetties and ports. These metals are highly active and easily corrode in the presence of seawater, sacrificing themselves to protect the piles from corrosion. The selection of the appropriate sacrificial anode material depends on factors such as the water chemistry, expected current output and the specific requirements of the project.

When designing a sacrificial anode CP system, the configuration of the anode system must be carefully considered. Two common options are remote anode groundbeds and homogenous distributed anodes. Remote anode groundbeds involve the installation of a separate anode bed located away from the piles, connected to the structure through cables. Homogenous distributed anodes, on the other hand, require the installation of individual anodes directly on each pile.

The choice between remote anode groundbeds and homogenous distributed anodes depends on various factors. Remote anode groundbeds are often preferred for larger structures where it is more practical to have a centralised anode system. They are suitable when space or access limitations prevent the installation of individual anodes on each pile. Furthermore, remote anode groundbeds facilitate ease of maintenance and monitoring as the anodes are concentrated in one location.

On the other hand, homogenous distributed anodes are more advantageous for smaller structures or situations where the piles are closely spaced. Installing individual anodes on each pile ensures more localised protection and avoids potential interference between different piles. Additionally, distributed anodes offer easier inspection and maintenance since they are readily accessible.

To optimise the efficiency of the cathodic protection system, anode selection plays a crucial role. The use of long slender stand-off anodes, as recommended by DNV guidelines, can enhance the effectiveness of the sacrificial anode CP system. These anodes offer a greater surface area-to-mass ratio, resulting in higher current output and improved corrosion protection for the piles.

In conclusion, designing piles in jetties and ports with sacrificial anode cathodic protection systems requires careful consideration of various factors. Zinc and aluminium anodes are commonly used due to their sacrificial properties. The choice between remote anode groundbeds and homogenous distributed anodes depends on the specific project requirements. For optimal efficiency, selecting long slender stand-off anodes based on DNV guidelines can provide enhanced corrosion protection. By considering these design considerations, an effective sacrificial anode CP system can be implemented, prolonging the service life of the piles and ensuring the durability of jetties and ports.

A cathodic protection system is a corrosion prevention method used for reinforcement bars in concrete structures. It aims to protect the steel bars from corrosion, which can weaken the structure over time. There are two main types of cathodic protection systems: impressed current and galvanic (sacrificial anode) systems.

In an impressed current cathodic protection system, a power supply is connected to the reinforcement bars. This power supply generates a direct current (DC) that flows through the (ribbon or mesh) anodes and bars, creating a cathodic reaction. This process shifts the electrochemical potential of the reinforcement bars to a more negative value, preventing corrosion. The DC current is controlled to maintain the desired protection level and the power supply requires regular monitoring and maintenance.

On the other hand, a galvanic cathodic protection system utilises sacrificial anodes made of a more active metal, such as zinc. These anodes are connected to the reinforcement bars and form a galvanic cell. The anodes corrode sacrificially, releasing electrons that flow to the reinforcement bars, providing cathodic protection. Over time, the anodes are gradually consumed. Galvanic systems are generally simpler to install and require less maintenance compared to impressed current systems.

Both types of cathodic protection systems are effective in preventing corrosion of reinforcement bars in concrete structures. The choice between impressed current and galvanic systems depends on factors such as the structure’s size, design and maintenance requirements, as well as budget considerations.

Evaluating the Cost-Effectiveness of Reinforcement Bars in Concrete CP System

Evaluating the cost-effectiveness of cathodic protection for reinforcement bars in concrete involves considering both the initial investment and long-term maintenance costs against the potential benefits gained from corrosion prevention. However, it is crucial to also account for additional factors such as earthquake risks, as corrosion-induced cracking of the concrete can have severe consequences in seismic events. Here’s an explanation:

Initial Installation Costs: The cost of installing a cathodic protection system includes equipment, materials, labour and engineering design. Impressed current systems generally require more complex installations with power supplies and monitoring equipment, leading to higher upfront costs compared to galvanic systems. However, the size and complexity of the structure may also impact the overall installation costs.

Maintenance and Operation Costs: Both impressed current and galvanic systems have ongoing maintenance requirements. Impressed current systems require regular monitoring, adjustment of the power supply and periodic maintenance to ensure optimal performance. Galvanic systems, on the other hand, have relatively lower maintenance requirements. Consider the costs associated with routine inspections and any necessary repairs when evaluating the long-term maintenance expenses.

Corrosion Damage Costs: It is crucial to consider the potential costs associated with corrosion damage, especially in the context of earthquake risks. Corrosion-induced cracking of the concrete weakens the structure, making it more susceptible to damage during seismic events and ingress of chloride ions where there is wet environment. Assessing the potential costs of corrosion-related damages, such as structural failures or the need for extensive repairs after an earthquake, helps quantify the benefits of investing in a cathodic protection system.

Structure’s Service Life and Earthquake Vulnerability: The expected service life of the structure and its vulnerability to earthquakes are important factors in evaluating cost-effectiveness. Structures in seismic zones require enhanced durability and resistance to maintain their integrity during earthquakes. Implementing a cathodic protection system can significantly reduce the risk of corrosion-induced cracking, thereby improving the structure’s earthquake resistance and extending its service life. Assessing the potential costs of seismic damage and the value of structural resilience helps justify the investment in cathodic protection.

Comparative Analysis: Conducting a comparative analysis of different corrosion prevention methods is crucial, considering the earthquake risks. Consider the expected performance, durability, maintenance requirements and earthquake resistance of each method to determine the most cost-effective solution for the specific project.

ICCP

Design Considerations for Piles in Reinforcement Bars in Concrete Impressed Current Cathodic Protection Systems: A Comprehensive Guide

The guide offers a detailed and systematic approach that we follow to ensure the effective and efficient implementation of these systems. Here’s a summary of the main aspects covered in our guide:

Design Criteria: The guide emphasises the importance of establishing clear design criteria based on factors such as expected service life, exposure conditions and desired corrosion protection level.

System Sizing and Layout: Proper sizing and layout of the impressed current cathodic protection system are crucial. The guide provides guidance on determining the appropriate current density, anode spacing and distribution along the reinforcement bars.

Power Supply and Electrical Design: The selection and design of the power supply system are critical. The guide addresses aspects such as power supply capacity, voltage requirements, current output control and electrical safety measures.

Anode Selection and Installation: The use of titanium as an impressed current anode, highlighting its corrosion resistance and durability. Our guide provides recommendations on anode type, size and installation methods, considering factors such as anode spacing, depth and connection techniques.

Monitoring and Maintenance: Our guide emphasises the importance of monitoring and maintenance to ensure the ongoing effectiveness of the cathodic protection system. We outline recommended monitoring techniques, maintenance activities and provides guidance on anode replacement, system inspections and corrective actions.

Compliance with Standards and Regulations: Our guide emphasises the need for compliance with industry standards and regulations, providing references to applicable codes and guidelines to ensure the reliability and safety of the system.

In addition to the previous points, we also cover the use of titanium as a common material for impressed current anodes. Titanium offers excellent corrosion resistance and durability, making it well-suited for long-term cathodic protection applications. The guide provides information on the selection and installation of titanium anodes, including considerations such as the specific grade of titanium, coating options for enhanced performance and proper electrical connections.

Galvanic

Design Considerations for Piles in Reinforcement Bars in Concrete Galvanic Cathodic Protection Systems: A Comprehensive Guide

Design Criteria: Our guide emphasises the importance of establishing clear design criteria specific to the structure and its corrosion risks. Factors such as the expected service life, exposure conditions and desired level of corrosion protection must be defined to guide the design process effectively.

Anode Selection: Our guide highlights that zinc anodes are commonly used in galvanic cathodic protection systems. Zinc is an active metal that sacrificially corrodes to protect the reinforcement bars. It provides recommendations for selecting the appropriate type, size and configuration of zinc anodes based on the specific project requirements.

Special Mortar Capsule: Our guide introduces a notable feature of galvanic cathodic protection systems using zinc anodes, which is the incorporation of a special mortar capsule. This capsule, made of an alkaline mortar mix, serves multiple purposes. It helps reduce the local pH, increases conductivity in the immediate anode vicinity and acts as a barrier to absorb and retain the corroded zinc particles, preventing their migration and potential harm to the structure cracking.

Anode Placement and Spacing: Our guide provides guidance on the optimal placement and spacing of zinc anodes to ensure uniform protection along the reinforcement bars. Factors such as concrete cover thickness, reinforcement bar spacing and the distribution of anodes are considered to achieve effective and efficient corrosion prevention.

Monitoring and Maintenance: Our guide emphasises the importance of monitoring the performance of galvanic cathodic protection systems over time. It provides recommendations for periodic inspections and measurements to assess the anode condition, the level of cathodic protection and the overall system effectiveness. Proper maintenance procedures, including the timely replacement of consumed zinc anodes are also addressed.

Compliance with Standards and Regulations: Our guide stresses the need for adherence to relevant industry standards and regulations when designing galvanic cathodic protection systems. It provides references to applicable codes and guidelines to ensure the system meets required specifications and operates safely.

Cathodic protection systems for long span bridge tower shafts in seawater are crucial for preventing corrosion and ensuring the structural integrity of these vital infrastructure elements. Due to the large scale of singular steel surfaces and the deep depths involved, both galvanic and impressed current cathodic protection systems are commonly employed. While these systems share similarities with jetty and port pile cathodic protection systems, they require special considerations due to the unique characteristics of bridge tower shafts.

In galvanic cathodic protection, sacrificial anodes, typically made of zinc or aluminium, are installed on the tower shaft surface. These anodes, connected to the steel structure, corrode sacrificially to protect the tower shaft from corrosion. The system is designed to ensure adequate coverage of anodes, taking into account the large surface area of the tower shafts. Regular inspections and anode replacement are essential to maintain the system’s effectiveness and prevent corrosion.

Impressed current cathodic protection involves the use of a power supply to generate a direct current (DC) that is applied to the tower shaft. This DC current creates a cathodic reaction on the surface of the structure, shifting its electrochemical potential to a more negative value. The impressed current system requires careful design and installation, considering the large-scale surface area and the depths of the tower shafts. Monitoring and maintenance of the power supply, anode distribution and electrical connections are critical to ensure optimal protection.

Both galvanic and impressed current cathodic protection systems for long span bridge tower shafts in seawater address the unique challenges posed by the large-scale steel surfaces and deep depths. They aim to provide a protective electrical potential to prevent corrosion and extend the service life of these critical structures. The proper selection and installation of anodes, the design of electrical circuits, regular monitoring and maintenance are essential to ensure the long-term effectiveness of the cathodic protection systems for bridge tower shafts in seawater.

Evaluating the Cost-Effectiveness of Bridge Shafts CP System

Initial Installation Costs: The cost of installing a CP system for bridge shafts includes various components such as anode installation, electrical connections, power supply, monitoring equipment and engineering design. The size and complexity of the bridge shafts, as well as the chosen CP system type (galvanic or impressed current), will influence the initial installation costs. It is crucial to consider these costs in relation to the expected service life of the bridge and the potential risks and consequences of corrosion-induced damage. A thorough cost analysis should also factor in any site-specific requirements, such as access limitations or environmental considerations, that may affect the installation process.

Ongoing Maintenance and Operation Costs: Both galvanic and impressed current CP systems for bridge shafts require regular maintenance to ensure optimal performance. Galvanic systems generally have lower maintenance requirements as they rely on sacrificial anodes that need periodic replacement. Impressed current systems, on the other hand, necessitate ongoing monitoring, adjustment of the power supply, anode maintenance and inspections. It is essential to consider the long-term maintenance and operation costs associated with each system type when evaluating cost-effectiveness. Additionally, any potential disruptions to bridge operations during maintenance activities should be accounted for in the cost analysis.

Corrosion Damage Costs: Evaluating the cost-effectiveness of a CP system should also consider the potential costs associated with corrosion damage to bridge shafts. Corrosion can lead to structural deterioration, decreased load-carrying capacity and costly repairs or replacement. By implementing an effective CP system, the risk of corrosion-induced damage can be significantly reduced, resulting in long-term cost savings. It is important to estimate the potential costs of corrosion-related damage and compare them to the investment required for the CP system. Additionally, considering the potential societal and economic impacts of bridge failure due to corrosion underscores the importance of effective corrosion prevention measures.

Comparative Analysis: A comprehensive cost-effectiveness evaluation should involve a comparative analysis of alternative corrosion prevention methods for bridge shafts. This analysis may include considerations such as coatings, inhibitors and other protective measures in addition to CP systems. Factors to assess include the expected performance, durability, maintenance requirements and cost-effectiveness of each method. It is essential to compare the long-term costs and benefits of each option to determine the most cost-effective solution for the specific bridge shafts, considering their size, location, expected service life and exposure conditions.

By considering the initial installation costs, ongoing maintenance expenses, potential corrosion damage costs and conducting a comparative analysis of alternative corrosion prevention methods, engineers and decision-makers can evaluate the cost-effectiveness of a CP system for bridge shafts. This evaluation helps determine the best approach to mitigate corrosion risks, protect the structural integrity of the bridge and optimise the use of financial resources.

ICCP

Our comprehensive guide covers key considerations to ensure the effective implementation of these systems:

Anode Positioning for Homogenous Current Distribution: The guide emphasises the importance of properly positioning the anodes to achieve a homogenous current distribution on the steel shaft surface. This ensures uniform protection and helps prevent localised corrosion. Careful consideration is given to factors such as the size and shape of the bridge shafts, as well as the anode placement along the shafts, to optimise current distribution.

Titanium Disc Anodes for Effective Protection: The guide highlights the effectiveness of titanium disc anodes for bridge shafts impressed cathodic protection systems. Titanium offers excellent corrosion resistance, making it well-suited for long-term protection in aggressive environments. The guide provides recommendations on the selection, sizing and installation of titanium disc anodes to maximise their protective performance.

Installation of Zinc and Silver Reference Electrodes for Maintenance: To facilitate effective monitoring and maintenance of the impressed current cathodic protection system, our guide suggests the installation of both zinc and silver reference electrodes but not necessarily. Zinc reference electrodes are useful for evaluating the condition of the anodes, while silver reference electrodes help monitor the overall system performance. These reference electrodes allow for accurate measurements and adjustments during routine inspections and maintenance activities.

Detailed Calculation of TR Unit Capacities: Our guide emphasises the need for a detailed calculation of the TR (Transformer Rectifier) unit capacities in impressed current cathodic protection systems for bridge shafts. TR units convert alternating current (AC) to direct current (DC) and supply the required current to the anodes. Accurate calculation of the TR unit capacities ensures the system can meet the large current demands of bridge shafts effectively. Factors such as the size of the bridge shafts, the desired level of protection and the overall system design are taken into account during this calculation process.

By considering the positioning of anodes for homogenous current distribution, utilising titanium disc anodes, installing zinc and silver reference electrodes for maintenance purposes and conducting detailed calculations of TR unit capacities, our guide assists in the design of effective and reliable impressed current cathodic protection systems for bridge shafts. The guide provides engineers with practical recommendations to ensure the long-term durability and corrosion prevention of bridge shafts in various environmental conditions.

Galvanic

Our comprehensive guide covers key considerations to ensure the effective implementation of these systems:

Use of Long Slender Stand-Off Anodes for Efficiency: Our guide highlights the use of long slender stand-off anodes for galvanic cathodic protection systems on bridge shafts. These anodes are chosen for their efficiency in providing sacrificial protection to the steel structure. The long slender shape allows for a greater surface area contact with the electrolyte, ensuring an extended lifespan and effective corrosion prevention.

Importance of Homogenous Current Distribution: The guide emphasises the significance of achieving a homogenous current distribution across the entire steel shaft surface. This ensures uniform protection and minimises the risk of localised corrosion. Proper positioning and spacing of sacrificial anodes are crucial to achieve this uniform distribution, taking into account the size, shape and environmental conditions of the bridge shafts.

Potential Readings for Understanding Polarisation: After the installation of the galvanic cathodic protection system and sufficient polarisation time, we suggest conducting potential readings using a bathycorrometer in the middle of the anodes. This measurement helps to assess the polarisation level of the entire structure. By obtaining potential readings at this specific location, engineers gain a better understanding of the overall polarisation status of the bridge shaft, ensuring effective corrosion prevention.

Our guide provides recommendations for designing efficient and reliable galvanic cathodic protection systems for bridge shafts. The guide highlights the use of long slender stand-off anodes for enhanced efficiency, emphasises the importance of achieving homogenous current distribution and suggests conducting potential readings to assess the polarisation status of the structure. These considerations help engineers optimise the design and implementation of galvanic cathodic protection systems, ensuring the long-term corrosion prevention and structural integrity of bridge shafts in various environmental conditions.
